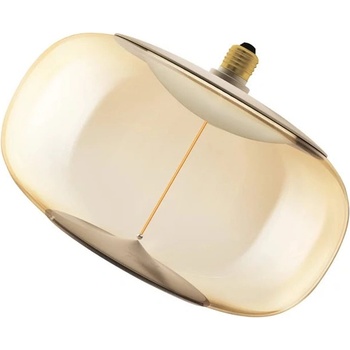

OSRAM LED крушка Osram Vintage 1906 Big Elipse 42 Magnetic DIM 818, E27, 12W, 500lm, 1800K

Product benefits

• Very low energy consumption
• Instant 100 % light, no warm-up time
• Can be easily fitted instead of ordinary light bulbs
• Type of protection: IP20, Ideal for indoor use
• Decorative lamps with innovative LED "filament-magnetic" technology
• No Filament Holder: Perfect for decorative installations
• Available in various bulb shapes and diameters



A reas of application

• Perfect for decorative installations
• Domestic applications
• General illumination



Product features

• Lifetime: up to 15,000 h
• Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
• Lamp made of plastic
• Pleasant light: Warm white comfort light colour
• Can be used directly as luminaire
• Dimmable

Electrical data

Nominal wattage 12 WConstruction wattage 12.00 WNominal voltage 220…240 VOperating mode AC MainsClaimed equiv. conventional lamp power 42 WNominal current 70 mAType of current ACInrush current 1 AOperating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 108Max. lamp number on MCB B16 A 134Total harmonic distortion ≤ 90 %Power factor λ ≥ 0.50

Photometrical data

Luminous flux 500 lmLuminous efficacy 41 lm/WLumen main. fact. at end of nom. life time 0.93Light color (designation) Comfort warm whiteColor temperature 1800 KColor rendering index Ra 80Light color 818Standard deviation of color matching ≤6 sdcmFlickering metric (Pst LM) ≤1Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 320 °Warm-up time (60 %) 0.50 sStarting time < 0.5 s

Dimensions & Weight

Overall length 210.00 mmDiameter 300.00 mmMaximum diameter 300 mmProduct weight 710.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 55 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) E27Mercury content 0.0 mgMercury-free YesDesign / version ClearProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance. com/compatibility


Certificates & Standards

Type of protection IP20Standards CE, UKCA, EACPhotobiological safety group acc. to EN62778 RG1

Country-specific categorizations

Order reference 1906LBELPD 12W/

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional NDLSMains or non-mains MLSLight source cap-type (or other electric interface) E27Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoStandby power 0 WClaim of equivalent power YesLength 210.00 mmHeight 300.00 mmWidth 300.00 mmR9 Colour rendering index 1Beam angle correspondence SPHERE_360Survival factor 0.9Displacement factor ≥0.7LED light source replaces a fluorescent light source No
