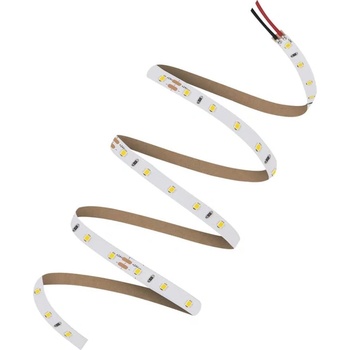

OSRAM LED лента Ledvance LED Strip V 1500, 60W, 24V, 6180lm, 5m

Product benefits

• Great scope of design options due to long and flexible LED strips
• Easy installation, no tools required for connection
• Easy mounting on many smooth surfaces thanks to self-adhesive tape
• Maximum flexibility due to large range of accessories
• Simple connection thanks to integrated cables on both sides

Areas of application

• General indoor illumination
• Decorative illumination
• Private living areas

Product features

• Flexible and cuttable LED strip
• Smallest cuttable unit: 100 mm
• Lifetime (L70/B50): up to 30,000 h at Tc max. : 75°C
• Luminous flux: 1500 lm/m
• Color rendering index Ra: > 80
• Large range of color temperatures: from warm white to cool daylight

Technical data

Electrical data

Nominal wattage 60.00 WConstruction wattage 60.00 WNominal wattage per meter 13.2 WNominal voltage 24 VInput voltage range 23…25 VType of current DCNominal current 2500 mA

Photometrical data

Luminous efficacy 113 lm/WLuminous flux 6180 lmLuminous flux per meter 1490 lmColor temperature 4000 KColor rendering index Ra > 80Light color LED DaylightLight color (designation) DaylightStandard deviation of color matching ≤5 sdcm

Light technical data

Beam angle 120 °Rated beam angle (half peak value) 120.00 °

LED Module information

Number of LEDs per meter 70Number of LEDs per module 350Number of LEDs per smallest unit 7

Dimensions

Length 5000.00 mmLength – smallest unit 100 mmCable length 500.000Width 8.00 mmHeight 1.50 mmPrewired YesConductor cross section 0.5 mm2LED pitch 14.29 mmShort pitch NoProduct weight 78.00 g

Temperatures & operating conditions

Ambient temperature range -20…+55 °CMaximum temperature at tc test point 75 °C

Lifespan

Nominal lamp life time 30000 h

Capabilities

Dimmable Yes 1)Lowest bending radius 30,0 mmSelf-adhesive Yes

Certificates & Standards

Approval marks – approval CE, TUVProtection class IIIType of protection IP00Energy class of contained Light source FSalt mist resistance acc. IEC 60068-2-52 NoUV resistance acc. IEC 60068-2-5 NoLogistical dataTemperature range at storage -20…+80 °C
