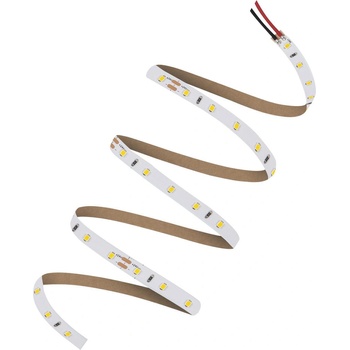

OSRAM LED лента Ledvance LED Strip V 500, 24W, 24V, 2450lm, 5m

Product benefits

• Great scope of design options due to long and flexible LED strips


• Easy installation, no tools required for connection


• Easy mounting on many smooth surfaces thanks to self-adhesive tape


• Maximum flexibility due to large range of accessories


• Simple connection thanks to integrated cables on both sides

Areas of application

• General indoor illumination


• Decorative illumination


• Private living areas

Product features

• Flexible and cuttable LED strip


• Smallest cuttable unit: 100 mm


• Lifetime (L70/B50): up to 30,000 h at Tc max. : 75°C


• Luminous flux: 500 lm/m


• Color rendering index R a : 80


• Large range of color temperatures: from warm white to cool daylight

Technical data

Electrical data

Nominal wattage
24.00 W

Construction wattage
24.00 W

Nominal wattage per meter
5 W

Nominal voltage
24 V

Input voltage range
23…25 V

Type of current
DC

Nominal current
1000 mA

Photometrical data

Luminous efficacy
112 lm/W 1)

Luminous flux
2450 lm

Luminous flux per meter
560 lm 1)

Color temperature
4000 K

Color rendering index Ra
> 80

Light color LED
Daylight

Light color (designation)
Daylight

Standard deviation of color matching
≤5 sdcm

Light technical data

Beam angle
120 °

Rated beam angle (half peak value)
120.00 °

LED Module Information

Number of LEDs per meter
70

Number of LEDs per module
350

Number of LEDs per smallest unit
7

Dimensions

Length
5000.00 mm

Length – smallest unit
100 mm

Cable length
500.000

Width
8.00 mm

Height
1.50 mm

Prewired
Yes

Conductor cross section
0.5 mm2

LED pitch
14.29 mm

Short pitch
No

Temperatures & operating conditions

Ambient temperature range
-20…+55 °C

Maximum temperature at tc test point
75 °C

Lifespan

Nominal lamp life time
30000 h

Capabilities

Dimmable
Yes 1)

Lowest bending radius
30,0 mm

Self-adhesive
Yes

Certificates & Standards

Approval marks – approval
CE, TUV

Protection class
III

Type of protection
IP00

Energy class of contained Light source
F

Salt mist resistance acc. IEC 60068-2-52
No

UV resistance acc. IEC 60068-2-5
No

Logistical Data

Temperature range at storage
-20…+80 °C
