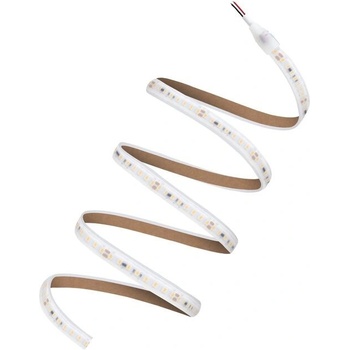

OSRAM LED лента Ledvance LS P -500/940/5/IP67, 21W, 24V, 2360lm, 5m

Product benefits

• Great scope of design options due to long and flexible LED strips
• Easy installation, no tools required for connection
• Easy mounting on many smooth surfaces thanks to self-adhesive tape
• Maximum flexibility due to large range of accessories
• Simple connection thanks to integrated cables on both sides
• Suitable for use in damp conditions thanks to high type of protection



Areas of application

• General indoor illumination
• General outdoor illumination
• Industry
• Of fices, retail outlets and conference rooms
• Architecture lighting
• Decorative illumination





Technical data



Electrical data

Nominal wattage 21.00 WConstruction wattage 21.00 WNominal wattage per meter 4.2 WNominal voltage 24 VInput voltage range 23…25 VType of current DCNominal current 875 mA



Photometrical data

Luminous efficacy 122 lm/WLuminous flux 2360 lmLuminous flux per meter 515 lmColor temperature 4000 KColor rendering index Ra > 90Light color LED DaylightLight color (designation) DaylightStandard deviation of color matching ‹3 sdcm



Light technical data

Beam angle 110 °Rated beam angle (half peak value) 110.00 °



LED MODULE INFORMATION

Number of LEDs per meter 144Number of LEDs per module 720Number of LEDs per smallest unit 8



Dimensions & Weight

Length 5000.00 mmLength – smallest unit 55.56 mmCable length 500.000Width 10.00 mmHeight 4.70 mmPrewired YesConductor cross section 0.5 mm2LED pitch 6.94 mmShort pitch YesProduct weight 380.00 g



Colors & materials

Cover material Silicone



Temperatures & operating conditions

Ambient temperature range -20…+55 °CMaximum temperature at tc test point 80 °C



Lifespan

Nominal lamp life time 50000 h



Additional product data

Mounting location All surfaces



Capabilities

Dimm able Yes 1)Lowest bending radius 30,0 mmSelf-adhesive Yes

1) Dimmable with suitable drivers, see also www. ledvance. com/dim




Certificates & Standards

Approval marks – approval CE, TUV, ENECProtection class IIIType of protection IP67Energy class of contained light source ESalt mist resistance acc. IEC 60068-2-52 YesUV resistance acc. IEC 60068-2-5 Yes



LOGISTICAL DATA

Temperature range at storage -20…+80 °C



PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mgQuantity of rare earths Contains at least 1 mg
