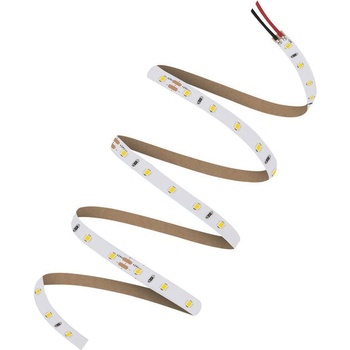

OSRAM LED лента Ledvance LS V -1000/865/5, 40W, 24V, 4240lm, 5m

Product benefits

• Great scope of design options due to long and flexible LED strips
• Easy installation, no tools required for connection
• Easy mounting on many smooth surfaces thanks to self-adhesive tape
• Maximum flexibility due to large range of accessories
• Simple connection thanks to integrated cables on both sides



Areas of application

• General indoor illumination
• Decorative lighting
• Private living areas





Technical data



Electrical data

Nominal wattage 40.00 WConstruction wattage 40.00 WNominal wattage per meter 9 WNominal voltage 24 VInput voltage range 23…25 VType of current DCNominal current 1667 mA



Photometrical data

Luminous efficacy 116 lm/W 1)Luminous flux 4240 lmLuminous flux per meter 1040 lm 1)Color temperature 6500 KColor rendering index Ra > 80Light color LED Cold WhiteLight color (designation) Cold WhiteStandard deviation of color matching ≤5 sdcm

1) Value based on first meter of the product




Light technical data

Beam angle 120 °Rated beam angle (half peak value) 120.00 °



LED MODULE INFORMATION

Number of LEDs per meter 70Number of LEDs per module 350Number of LEDs per smallest unit 7



Dimensions & Weight

Length 5000.00 mmLength – smallest unit 100 mmCable length 500.000Width 8.00 mmHeight 1.50 mmPrewired YesConductor cross section 0.5 mm2LED pitch 14.29 mmShort pitch NoProduct weight 78.00 g



Temperatures & operating conditions

Ambient temperature range -20…+55 °CMaximum temperature at tc test point 75 °C



Lifespan

Nominal lamp life time 30000 h



Capabilities

Dimmable Yes 1)Lowest bending radius 30,0 mmSelf-adhesive Yes

1) Dimmable with suitable drivers, see also www. ledvance. com/dim




Certificates & Standards

Approval marks – approval CE, TUVProtection class IIIType of protection IP00Energy class of contained light source FSalt mist resistance acc. IEC 60068-2-52 NoUV resistance acc. IEC 60068-2-5 No



LOGISTICAL DATA

Temperature range at storage -20…+80 °C



PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mgQuantity of rare earths Contains at least 1 mg
