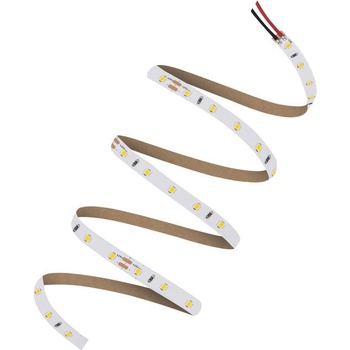

OSRAM LED лента Ledvance LS V -1500/865/5, 60W, 24V, 6180lm, 5m

Product benefits

• Great scope of design options due to long and flexible LED strips
• Easy installation, no tools required for connection
• Easy mounting on many smooth surfaces thanks to self-adhesive tape
• Maximum flexibility due to large range of accessories
• Simple connection thanks to integrated cables on both sides

Areas of application

• General indoor illumination
• Decorative illumination
• Private living areas





Technical data



Electrical data

Nominal wattage 60.00 WConstruction wattage 60.00 WNominal wattage per meter 13.2 WNominal voltage 24 VInput voltage range 23…25 VType of current DCNominal current 2500 mA



Photometrical data

Luminous efficacy 113 lm/W 1)Luminous flux 6180 lmLuminous flux per meter 1490 lm 1)Color temperature 6500 KColor rendering index Ra > 80Light color LED Cold WhiteLight color (designation) Cold WhiteStandard deviation of color matching ≤5 sdcm

1) Value based on first meter of the product




Light technical data

Beam angle 120 °Rated beam angle (half peak value) 120.00 °



LED MODULE INFORMATION

Number of LEDs per meter 70Number of LEDs per module 350Number of LEDs per smallest unit 7



Dimensions & Weight

Length 5000.00 mmLength – smallest unit 100 mmCable length 500.000Width 8.00 mmHeight 1.50 mmPrewired YesConductor cross section 0.5 mm2LED pitch 14.29 mmShort pitch NoProduct weight 78.00 g



Temperatures & operating conditions

Ambient temperature range -20…+55 °CMaximum temperature at tc test point 75 °C



Lifespan

Nominal lamp life time 30000 h



Capabilities

Dimmable Yes 1)Lowest bending radius 30,0 mmSelf-adhesive Yes

1) Dimmable with suitable drivers, see also www. ledvance. com/dim




Certificates & Standards

Approval marks – approval CE, TUVProtection class IIIType of protection IP00Energy class of contained light source FSalt mist resistance acc. IEC 60068-2-52 NoUV resistance acc. IEC 60068-2-5 No



LOGISTICAL DATA

Temperature range at storage -20…+80 °C



PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mgQuantity of rare earths Contains at least 1 mg
