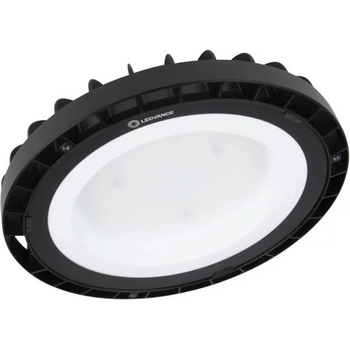

OSRAM LED осветително тяло Ledvance HB COMP V 166W 865 110DEG IP65, за таван, индустриално, 166W, 20000lm, студено бяла

Product benefits

• Modern exclusive design
• Energy savings of up to 60 % compared to conventional high bay luminaires
• Optimized weight and size due to compact design



Area s of application

• Replacem ent for high bay luminaires with mercury vapor or metal halide lamps
• Warehouses
• Logisti cs halls
• Industry
• High ceiling (e. g. in shopping malls, airports, commercial buildings, lobbies)



Pr oduct features

• Operating temperature: -20…45 °C
• Black aluminum housing, tempered glass cover
• Opal cover
• Type of protection: IP65
• Lifetime (L70): up to 50,000 h
• High luminous efficacy: up to 120 lm/W



Specifications



Electrical data

Nominal wattage 166.00 WNominal voltage 220…240 VMains frequency 50…60 HzNominal current 720 mAInrush current 8.34 AInrush current time Th50 19.84 sMax. number of luminaires per miniature circuit breaker B16 17Max. number of luminaires per miniature circuit breaker C10 11Max. number of luminaires per miniature circuit breaker C16 17Power factor λ > 0.90Total harmonic distortion < 20 %Protection class IOperating mode Mains voltage

Photometrical data

Luminous flux 20000 lmLuminous efficacy 120 lm/WColor temperature 6500 KLight color (designation) Cool DaylightColor rendering index Ra > 80Standard deviation of color matching ≤5 sdcmPhotobiological safety group acc. to EN62778 RG1Beam angle 110 °

Dimensions & Weight

Diameter 260.00 mmHeight 50.00 mmProduct weight 1500.00 gCable length 500 mm

Materials & Colors

Product color BlackHousing color BlackBody material AluminumGlow Wire Test according to IEC 60695-2-12 850 °CMercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °CType of connection Cable, 3-poleType of protection IP65Protection class IK (shock resistance) IK06Dimmable NoMounting type Post topMounting location CeilingApplication environment IndoorLED module replaceable Not replaceableWith light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h Lifespan L80/B10 at 25 °C 45000 h Lifespan L90/B10 at 25 °C 30000 hNumber of switching cycles > 100000

Certificates & Standards

Standards CE, UKCA, CB, EACLuminaire with limited surface temperature, "D sign" YesBall shot safe No
