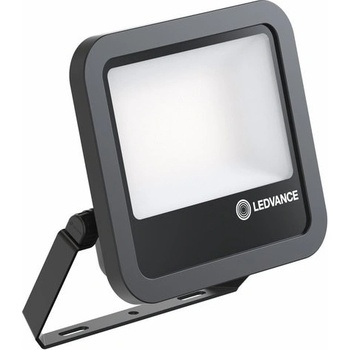

OSRAM LED прожектор Ledvance FL 100 P 69W 10KLM 840 PS SY100 BK, 69W, 10 000lm, 4000K, IP66, за стена

Product benefits

• Breather membrane to optimize air exchange, without compromising IP protection
• Highly versatile due to selectable power steps (Multi Lumen) on the housing
• Robust cable gland with integrated waterstop function
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• Bright, robust and durable
• Energy savings of up to 90 % compared to halogen lamp floodlights
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt



Areas of application

• Replacement for floodlights with halogen lamps
• Outdoor use (IP66)
• D-sign according to EN 60598-2-24 for fire-risk commercial unit, e. g. by accumulation of dust
• Public areas
• Building facades
• Construction areas
• Parking



Product features

• High luminous efficacy: up to 150 lm/W
• Type of protection: IP66
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm2 single wires
• Reflector-based, symmetric light distribution with 100° x 100° beam angle
• Mounting bracket with 30° angle and wide rotation area



Safety advice

• Max. wind load surface 0.045 m2





Technical data



Electrical data

Nominal wattage 69 W / 53 WNominal voltage 220…240 VMains frequency 50…60 HzNominal current 310/260 mAInrush current 18.8 AInrush current time Th50 86.2 sMax. number of luminaires per miniature circuit breaker B16 40Max. number of luminaires per miniature circuit breaker C10 25Max. number of luminaires per miniature circuit breaker C16 25Power factor λ > 0.90Total harmonic distortion < 20 %Protection class ISurge capability (L-N) 4 kVSurge capability (L/N-Ground) 6 kVOperating mode Integrated LED driver



Photometrical data

Luminous flux 10000 lm / 8000 lmLuminous efficacy 145 lm/WColor temperature 4000 KLight color (designation) Cool WhiteColor rendering index Ra 80Standard deviation of color matching 5 sdcmStroboscope effect metric (SVM) ≤0.9Photobiological safety group acc. to EN62778 RG1Photobiological safety group acc. to EN62471 RG1Beam angle 100 ° x 100 °



Dimensions & Weight

Length 236.00 mmHeight 236.00 mmWidth 52.00 mmProduct weight 1712.00 gCable length 1000 mm



Materials & Colors

Product color BlackHousing color BlackBody material AluminumCover material GlassLight emitting surface material GlassGlow Wire Test according to IEC 60695-2-12 650 °CMercury content 0.0 mg



Application & Mounting

Ambient temperature range -30…+50 °CTemperature range at storage -40…+70 °CType of connection Cable, 3-poleType of protection IP66Protection class IK (shock resistance) IK08Corrosion resistance class acc. to EN 12944 C4Dimmable NoMounting type SurfaceMounting location Wall, Pole, Floor, CeilingApplication environment OutdoorAdjustable YesWith light source YesReplaceable light source No



Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)Lifespan L80/B10 at 25 °C 75000 h 1)Lifespan L90/B10 at 25 °C 35000 h

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)




Control gear

Output current 550 mAECG - Output ripple current < 20 %



Certificates & Standards

Standards CE, CB, ENEC, EAC, UKCA, EPDLuminaire with limited surface temperature, "D sign" YesBall shot safe NoEPD LEDV-00030-V01.01-ENReplaceable light source (EPREL) Not replaceable



Additional product data

Added function MULTI SELECT



PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mgQuantity of rare earths Contains at least 1 mg
