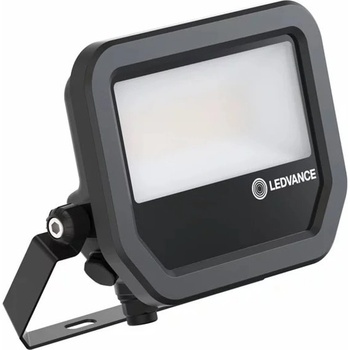

OSRAM LED прожектор Ledvance FL 20 P 2K4LM 840 PS SY100 BK, 17W, 2400lm, 4000K, IP66, за стена/таван/под

Product benefits

• Breather membrane to optimize air exchange, without compromising IP protection
• Highly versatile due to selectable power steps (Multi Lumen) on the housing
• Robust cable gland with integrated waterstop function
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• Bright, robust and durable
• Energy savings of up to 90 % compared to halogen lamp floodlights
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt



Areas of application

• Replacem ent for floodlights with halogen lamps
• Outdoor use (IP66)
• D-sign according to EN 60598-2-24 for fire-risk commercial unit, e. g. by accumulation of dust
• Public areas
• Building facades
• Construction areas
• Parking
• Gardens and balconies



P roduct features

• High luminous efficacy: up to 145 lm/W
• Type of protection: IP66
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm2 single wires
• Reflector-based, symmetric light distribution with 100° x 100° beam angle
• Mounting bracket with 30° angle and wide rotation area



Safety advice

• Max. wind load surface 0.015 m2



Specifications



Electrical data

Nominal wattage 17 W / 11 WNominal voltage 220…240 VMains frequency 50…60 HzNominal current 75/60 mAInrush current 7.32 AInrush current time Th50 23.4 sMax. number of luminaires per miniature circuit breaker B16 102Max. number of luminaires per miniature circuit breaker C10 81Max. number of luminaires per miniature circuit breaker C16 131Power factor λ > 0.90Total harmonic distortion < 20 %Protection class ISurge capability (L-N) 2 kVSurge capability (L/N-Ground) 4 kVOperating mode Integrated LED driver

Photometrical data

Luminous flux 2400 lm / 1600 lmLuminous efficacy 145 lm/WColor temperature 4000 KLight color (designation) Cool WhiteColor rendering index Ra 80Standard deviation of color matching 5 sdcmStroboscope effect metric (SVM) ≤0.9Photobiological safety group acc. to EN62778 RG1Photobiological safety group acc. to EN62471 RG1Beam angle 100 ° x 100 °

Dimensions & Weight

Length 157.00 mmHeight 141.00 mmWidth 38.00 mmProduct weight 526.00 gCable length 1000 mm

Materials & Colors

Product color BlackHousing color BlackBody material AluminumCover material GlassLight emitting surface material GlassGlow Wire Test according to IEC 60695-2-12 650 °CMercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °CTemperature range at storage -40…+70 °CType of connection Cable, 3-poleType of protection IP66Protection class IK (shock resistance) IK07Corrosion resistance class acc. to EN 12944 C4Dimmable NoMounting type SurfaceMounting location Wall, Ceiling, FloorApplication environment OutdoorAdjustable YesReplaceable light source (EPREL) Not replaceableWith light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)Lifespan L80/B10 at 25 °C 75000 h 1)Lifespan L90/B10 at 25 °C 35000 h

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)


Control gear

Output current 133 mAECG - Output ripple current < 20 %

Certificates & Standards

Standards CE, CB, ENEC, EAC, UKCA, EPDLuminaire with limited surface temperature, "D sign" YesBall shot safe No

Additional product data

Added function MULTI SELECT
