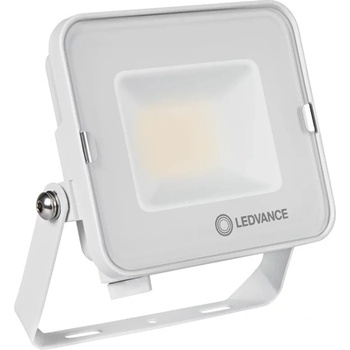

OSRAM LED прожектор Ledvance FL COMP V, 20W, 2000lm, 4000K, IP65, за стълб/под, бял

Product benefits

• Robust, yet light and compact design
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt
• Energy savings of up to 90 % compared to halogen lamp floodlights

Areas of application

• Replacem ent for floodlights with halogen lamps
• Outdoor use (IP65)
• Public areas
• Building facades
• Gardens, balconies and other outdoor areas
• Construction areas

Product features

• Reflector-b ased, symmetric light distribution with 100° x 100° beam angle
• Mounting bracket with 30° angle and wide rotation area
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm2 single wires

Technical data

Electrical data

Nominal wattage 20.00 WNominal voltage 220…240 VMains frequency 50…60 HzNominal current 97 mAInrush current 6 AInrush current time Th50 1.3 sMax. number of luminaires per miniature circuit breaker B16 90Max. number of luminaires per miniature circuit breaker C10 66Max. number of luminaires per miniature circuit breaker C16 105Power factor λ > 0.90Total harmonic distortion < 20 %Protection class IOperating mode Integrated LED driver

Photometrical data

Luminous flux 2000 lmLuminous efficacy 100 lm/WColor temperature 4000 KLight color (designation) Cool WhiteColor rendering index Ra ≥80Standard deviation of color matching < 5 sdcmLuminous intensity -Low flicker YesFlickering metric (Pst LM) -Stroboscope effect metric (SVM) -Photobiological safety group acc. to EN62778 RG1Photobiological safety group acc. to EN62471 RG1Beam angle 100 ° x 100 °

Dimensions

Length 124.00 mmHeight 29.00 mmWidth 122.00 mmCable length 1000 mm

Materials & Colors

Product color WhiteHousing color WhiteBody material AluminumCover material Tempered glassLight emitting surface material GlassGlow Wire Test according to IEC 60695-2-12 650 °CMercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+45 °CTemperature range at storage -40…+70 °CType of connection Cable, 3-poleType of protection IP65Protection class IK (shock resistance) IK06Dimmable NoMounting type SurfaceMounting location Pole, FloorApplication environment OutdoorAdjustable YesLED module replaceable Not replaceableWith light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 hLifespan L80/B10 at 25 °C 35000 hLifespan L90/B10 at 25 °C 25000 hNumber of switching cycles 100000

Certificates & Standards

Standards CE, CB, EACLuminaire with limited surface temperature, "D sign" NoBall shot safe No
