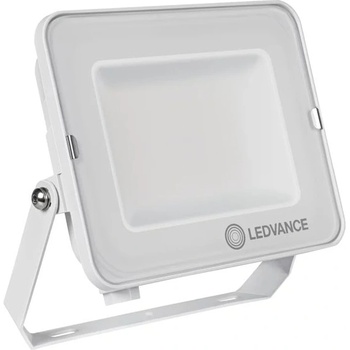

OSRAM LED прожектор Ledvance FL COMP V 50W 830 SYM 100 WT, 50W, 4500 lm, 3000K, IP65, за стълб/под

Product benefits

• Robust, yet light and compact design
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt
• Energy savings of up to 90 % compared to halogen lamp floodlights



Areas of application

• Replacem ent for floodlights with halogen lamps
• Outdoor use (IP65)
• Public areas
• Building facades
• Gardens, balconies and other outdoor areas
• Construction areas



Produ ct features

• Reflector-b ased, symmetric light distribution with 100° x 100° beam angle
• Mounting bracket with 30° angle and wide rotation area
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm2 single wires



Safet y advice

• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
• Terminal block not included. Installation must be made by a qualified person.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.





Technical data



Electrical data

Nominal wattage 50.00 WNominal voltage 220…240 VMains frequency 50…60 HzNominal current 242 mAInrush current 5.2 AInrush current time Th50 1 sMax. number of luminaires per miniature circuit breaker B16 36Max. number of luminaires per miniature circuit breaker C10 26Max. number of luminaires per miniature circuit breaker C16 42Power factor λ > 0.90Total harmonic distortion < 20 %Protection class IOperating mode Integrated LED driver



Photometrical data

Luminous flux 4500 lmLuminous efficacy 90 lm/WColor temperature 3000 KLight color (designation) Warm WhiteColor rendering index Ra ≥80Standard deviation of color matching < 5 sdcmLuminous intensity -Low flicker YesFlickering metric (Pst LM) -Stroboscope effect metric (SVM) -Photobiological safety group acc. to EN62778 RG1Photobiological safety group acc. to EN62471 RG1Beam angle 100 ° x 100 °



Dimensions & Weight

Length 160.00 mmHeight 36.00 mmWidth 170.00 mmProduct weight 560.00 gCable length 1000 mm



Materials & Colors

Product color WhiteHousing color WhiteBody material AluminumCover material Tempered glassLight emitting surface material GlassGlow Wire Test according to IEC 60695-2-12 650 °CMercury content 0.0 mg



Application & Mounting

Ambient temperature range -30…+45 °CTemperature range at storage -40…+70 °CType of connection Cable, 3-poleType of protection IP65Protection class IK (shock resistance) IK06Dimmable NoMounting type SurfaceMounting location Pole, FloorApplication environment OutdoorAdjustable YesWith light source YesReplaceable light source No



Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)Lifespan L80/B10 at 25 °C 35000 h 1)Lifespan L90/B10 at 25 °C 25000 hNumber of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)




Certificates & Standards

Standards CE, CB, EACLuminaire with limited surface temperature, "D sign" NoBall shot safe NoReplaceable light source (EPREL) Not replaceable



PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)Minimum percentage of recycled content in the product 0 % 1)
