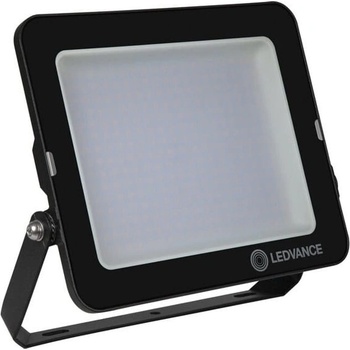

OSRAM LED прожектор Ledvance FL COMP V 840 SYM 100 BK, 135W, 13500lm, 4000K, IP65, за стена/стълб/под

Product benefits

• Robust, yet light and compact design
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt
• Energy savings of up to 90 % compared to halogen lamp floodlights



Areas of application

• Replacement for floodlights with halogen lamps
• Outdoor use (IP65)
• Public areas
• Building facades
• Gardens, balconies and other outdoor areas
• Construction areas



Product features

• Reflector-based, symmetric light distribution with 100° x 100° beam angle
• Surge protection: up to 4 kV (L/N-PE), 2 kV (L-N)
• Mounting bracket with 30° angle and wide rotation area
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm2 single wires
• Breather membrane to optimize air exchange, without compromising IP protection



Safety advice

• Max. wind load surface 0.061 m2
• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
• Terminal block not included. Installation must be made by a qualified person.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.





T echnical data



Electrical data

Nominal wattage 135.00 WNominal voltage 220…240 VMains frequency 50…60 HzNominal current 649 mAInrush current 9 AInrush current time Th50 2.7 sMax. number of luminaires per miniature circuit breaker B16 13Max. number of luminaires per miniature circuit breaker C10 10Max. number of luminaires per miniature circuit breaker C16 16Power factor λ > 0.90Total harmonic distortion < 20 %Protection class IOperating mode Integrated LED driver



Photometrical data

Luminous flux 13500 lmLuminous efficacy 100 lm/WColor temperature 4000 KLight color (designation) Cool WhiteColor rendering index Ra ≥80Standard deviation of color matching < 5 sdcmLuminous intensity -Low flicker YesFlickering metric (Pst LM) -Stroboscope effect metric (SVM) -Photobiological safety group acc. to EN62778 RG1Photobiological safety group acc. to EN62471 RG1Beam angle 100 ° x 100 °



Dimensions & Weight

Length 274.00 mmHeight 48.00 mmWidth 305.00 mmProduct weight 2210.00 gCable length 1000 mm



Materials & Colors

Product color BlackHousing color BlackBody material AluminumCover material Tempered glassLight emitting surface material GlassGlow Wire Test according to IEC 60695-2-12 650 °CMercury content 0.0 mg



Application & Mounting

Ambient temperature range -30…+45 °CTemperature range at storage -40…+70 °CType of connection Cable, 3-poleType of protection IP65Protection class IK (shock resistance) IK08Dimmable NoMounting type SurfaceMounting location Wall, Pole, FloorApplication environment OutdoorAdjustable YesWith light source YesReplaceable light source No



Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)Lifespan L80/B10 at 25 °C 35000 h 1)Lifespan L90/B10 at 25 °C 25000 hNumber of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)




Certificates & Standards

Standards CE, CB, EACLuminaire with limited surface temperature, "D sign" NoBall shot safe NoReplaceable light source (EPREL) Not replaceable
