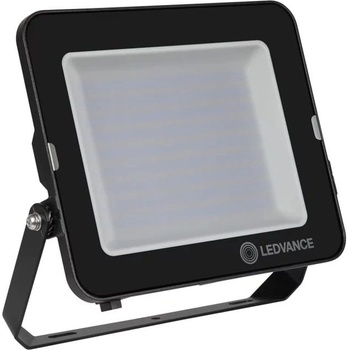

OSRAM LED прожектор Ledvance FL COMP V 90W 840 SYM 100 BK, 90W, 9000 lm, 4000K, IP65 защита, за стена/стълб/под

Product benefits

• Robust, yet light and compact design
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt
• Energy savings of up to 90 % compared to halogen lamp floodlights



Areas of application

• Replacem ent for floodlights with halogen lamps
• Outdoor use (IP65)
• Public areas
• Building facades
• Gardens, balconies and other outdoor areas
• Construction areas



Produ ct features

• Reflector-b ased, symmetric light distribution with 100° x 100° beam angle
• Surge protection: up to 4 kV (L/N-PE), 2 kV (L-N)
• Mounting bracket with 30° angle and wide rotation area
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm2 single wires
• Breather membrane to optimize air exchange, without compromising IP protection



Safety advice

• Max. wind load surface 0.043 m2
• All electrical connections must be made by a qualified person.
• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
• Terminal block not included. Installation must be made by a qualified person.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.



Specificat ions



Electrical data

Nominal wattage 90.00 WNominal voltage 220…240 VMains frequency 50…60 HzNominal current 434 mAInrush current 7.9 AInrush current time Th50 1.9 sMax. number of luminaires per miniature circuit breaker B16 20Max. number of luminaires per miniature circuit breaker C10 15Max. number of luminaires per miniature circuit breaker C16 23Power factor λ > 0.90Total harmonic distortion < 20 %Protection class IOperating mode Integrated LED driver

Photometrical data

Luminous flux 9000 lmLuminous efficacy 100 lm/WColor temperature 4000 KLight color (designation) Cool WhiteColor rendering index Ra ≥80Standard deviation of color matching < 5 sdcmLuminous intensity -Low flicker YesFlickering metric (Pst LM) -Stroboscope effect metric (SVM) -Photobiological safety group acc. to EN62778 RG1Photobiological safety group acc. to EN62471 RG1Beam angle 100 ° x 100 °

Dimensions & Weight

Length 236.00 mmHeight 40.00 mmWidth 255.00 mmProduct weight 1520.00 gCable length 1000 mm

Materials & Colors

Product color BlackHousing color BlackBody material AluminumCover material Tempered glassLight emitting surface material GlassGlow Wire Test according to IEC 60695-2-12 650 °CMercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+45 °CTemperature range at storage -40…+70 °CType of connection Cable, 3-poleType of protection IP65Protection class IK (shock resistance) IK08Dimmable NoMounting type SurfaceMounting location Wall, Pole, FloorApplication environment OutdoorAdjustable YesReplaceable light source (EPREL) Not replaceableWith light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)Lifespan L80/B10 at 25 °C 35000 h 1)Lifespan L90/B10 at 25 °C 25000 hNumber of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)


Certificates & Standards

Standards CE, CB, EACLuminaire with limited surface temperature, "D sign" NoBall shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)Minimum percentage of recycled content in the product 0 % 1)Product recyclability Mostly recyclable product 1)Packaging recyclability Mostly recyclable packaging 1)List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage NoContains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
