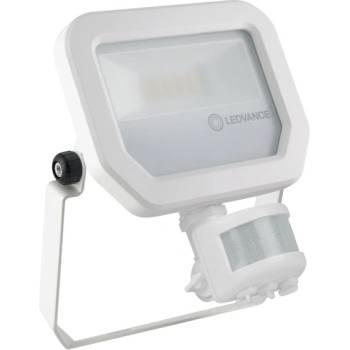

OSRAM LED прожектор Ledvance FL PFM SYM 100 S WT, 10W, 1200lm, 4000K, IP65, за стена/таван, със сензор

Product benefits

• Bright, robust and durable
• Demand optimized illumination due to flexible and programmable sensor
• Easy adjustment of sensor range, daylight detection and hold time
• Always-on override, activated via special mains switching pattern
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt
• Energy savings of up to 90 % compared to halogen lamp floodlights



Areas of application

• Replacement for floodlights with halogen lamps
• Outdoor use (IP65)
• Public areas
• Building facades
• Construction areas
• Gardens, balconies and other outdoor areas



Product features

• Flexible motion and daylight sensor
• Sensor with 350° pan and 180° tilt
• Reflector-based, symmetric light distribution with 100° x 100° beam angle
• Integrated wide voltage driver, suitable for 100 - 277 V AC
• Surge protection: up to 4 kV (L/N-PE), 2 kV (L-N)
• Mounting bracket with 30° angle and wide rotation area
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm2 single wires



Safety advice

• All electrical connections must be made by a qualified person.
• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
• Terminal block not included. Installation must be made by a qualified person.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.





Electrica l data

Nominal wattage 10.00 WNominal voltage 100…277 VMains frequency 50…60 HzNominal current 48 mAInrush current 7.2 AInrush current time Th50 21 sMax. number of luminaires per miniature circuit breaker B16 185Max. number of luminaires per miniature circuit breaker C10 135Max. number of luminaires per miniature circuit breaker C16 216Power factor λ > 0.90Total harmonic distortion < 20 %Protection class IOperating mode Integrated LED driver



Photometrical data

Luminous flux 1200 lmLuminous efficacy 120 lm/WColor temperature 4000 KLight color (designation) Cool WhiteColor rendering index Ra ≥80Standard deviation of color matching ≤5 sdcmLuminous intensity -Flickering metric (Pst LM) -Stroboscope effect metric (SVM) -Photobiological safety group acc. to EN62778 RG1Photobiological safety group acc. to EN62471 RG1Beam angle 100 ° x 100 °



Dimensions & Weight

Length 159.00 mmHeight 53.00 mmWidth 131.00 mmProduct weight 440.00 gCable length 1000 mm



Materials & Colors

Product color WhiteHousing color WhiteBody material AluminumLight emitting surface material GlassGlow Wire Test according to IEC 60695-2-12 650 °CMercury content 0.0 mg



Application & Mounting

Ambient temperature range -30…+50 °CTemperature range at storage -40…+70 °CType of connection Cable, 3-poleType of protection IP65Protection class IK (shock resistance) IK07Dimmable NoMounting type SurfaceMounting location Wall, CeilingApplication environment OutdoorAdjustable YesWith light source YesReplaceable light source No



Lifespan

Lifespan L70/B50 at 25 °C 70000 h 1)Lifespan L80/B10 at 25 °C 55000 h 1)Lifespan L90/B10 at 25 °C 35000 hNumber of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)




Control gear

Output current 220 mAECG - Output ripple current < 50 %



Sensor

Type of sensor Motion, LightSensor technology Passive infrared/PhotocellSensor detection angle 40 °…160 °Sensor controlled switching time 10 s…12 minDetection range of motion sensor 2…12 mDetection threshold of daylight sensor 10…2000 lxSensor IP rating IP65



Certificates & Standards

Standards CE, CB, ENEC, EAC, RoHS, EPDLuminaire with limited surface temperature, "D sign" NoBall shot safe NoEPD LEDV-00009-V01.01-ENReplaceable light source (EPREL) Not replaceable
