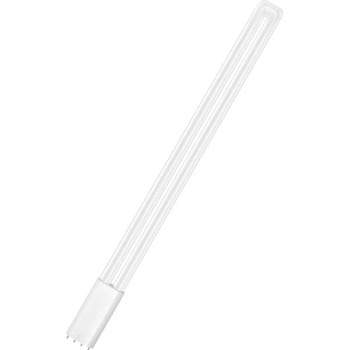

OSRAM LED пура Osram Dulux L LED HF & AC Mains, 2G11, 25W, 3250lm, 4000K (AC35201)

Electrical data

Nominal wattage 25 WConstruction wattage 25.00 WNominal voltage 220…240 VOperating mode ECG, AC MainsClaimed equiv. conventional lamp power 55 WNominal current 110 mAType of current ACInrush current 25 AOperating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 80Max. lamp number on MCB B16 A 130Total harmonic distortion ≤ 30 %Power factor λ > 0.90

Photometrical data

Luminous flux 3250 lmNominal useful luminous flux 90° 3250 lmLuminous efficacy 130 lm/WLumen main. fact. at end of nom. life time 0.70Light color (designation) Cool WhiteColor temperature 4000 KColor rendering index Ra 80Light color 840Standard deviation of color matching ≤6 sdcmFlickering metric (Pst LM) 1.0Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 140 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s

Dimensions & Weight

Overall length 537.00 mmDiameter 44.00 mmMaximum diameter 44 mmProduct weight 210.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °CMaximum temperature at tc test point 90 °C

Lifespan

Lifespan L70/B50 at 25 °C 30000 hNumber of switching cycles 200000Lumen maintenance at end of service lifetime 0.70Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) 2G11Mercury content 0.0 mgMercury-free YesDesign / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class EEnergy consumption 25.00 kWh/1000hType of protection IP20Standards CE, EACPhotobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)




Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional NDLSMains or non-mains MLSLight source cap-type (or other electric interface) 2G11Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEStandby power 0 WClaim of equivalent power NoLength 537.00 mmHeight 44.00 mmWidth 44.00 mmChromaticity coordinate x 0.381Chromaticity coordinate y 0.379R9 Colour rendering index 0.00Beam angle correspondence SPHERE_360Survival factor 0.90Displacement factor 0.90LED light source replaces a fluorescent light source No
