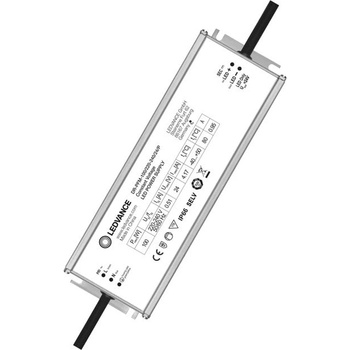

OSRAM LED захранване Ledvance DR-PFM, 100W, 24V, 46A

Product benefits

• Perfectly matched to 24 V LED flexible strips
• Very stable output power
• Quick and simple installation due to prewiring
• High efficiency and reliability
• Installation in very cold and hot environments



Areas of application

• Suitable for indoor and outdoor installations
• Facade and building illumination
• Ideal for illuminating public spaces
• Bathrooms, kitchens and outdoor areas
• Offices, shopping centers, hospitals, restaurants, hotels



Prod uct features

• Lifetime: up to 50,000 h (at max. tc temperature)
• Type of protection: IP66
• Operating temperature range at ta: -40…50 °C
• Supply voltage: 220…240 V
• Operating frequency: 50/60 Hz
• Surge protection: up to 4 kV (L-N) for 30W/60W, 6 kV (L-N) / 6 kV (L/N-PE) for 100W/150W/250W
• Short-circuit and overlaod protection



Specifications



Electrical data

Nominal wattage 100.00 WNominal output power 100 W 1)Nominal voltage 220…240 VNominal output voltage 24 V 2)Input voltage AC 198…264 V 3)U-OUT (working voltage) 24 VType of current DCNominal current 525 mANominal output current 4170 mA 4)Inrush current 46 AOutput ripple current (100 Hz) 5.21 %Mains frequency 50…60 HzTotal harmonic distortion < 20 % 5)Power factor λ 0.95 6)ECG efficiency 89 % 7)Device power loss 13 W 8)Max. ECG no. on circuit breaker 10 A (B) 13Max. ECG no. on circuit breaker 16 A (B) 16Max. ECG no. on circuit breaker 25 A (B) 25Surge capability (L/N-Ground) 6 kVSurge capability (L-N) 6 kVGalvanic isolation SELV

1) From 0 to 100 W
2) Maximum 24 V
3) Permitted voltage range
4) ±10%
5) At full load, 220…240 V, 50 Hz
6) Full load at 230 V
7) At full load and 230 V
8) At maximum LED load of 100 W


Dimensions & Weight

Length 197.00 mmMounting hole spacing, length 188,0 mmWidth 63.00 mmHeight 38.00 mmCable cross-section, input side 1 mm2Cable cross-section, output side 1 mm2Prewired YesProduct weight 840.00 g

Colors & materials

Product color AluminumCasing material MetalBody material Metal

Temperatures & operating conditions

Ambient temperature range -40…+50 °CMaximum temperature at tc test point 80 °CMax. housing temperature in case of fault 110 °CTemperature range in operation -40…+50 °CPermitted rel. humidity during operation 20…95 % 1)

1) Maximum 56 days/year at 95%


Lifespan

ECG lifetime 50000 h 1)

1) At maximum Tc = 80°C / 10% failure rate


Additional product data

Encapsulated Yes

Capabilities

Dimmable NoDimming interface Not dimmableOverheating protection YesOverload protection NoShort-circuit protection YesMax. cable length to lamp/LED module 10 mSuitable for fixtures with prot. class ISuitable for emergency lighting NoType of connection, output side Cables

Certificates & Standards

Approval marks – approval CE, TUVStandards Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384Protection class IType of protection IP66

LOGISTICAL DATA

Temperature range at storage -40…+80 °C
