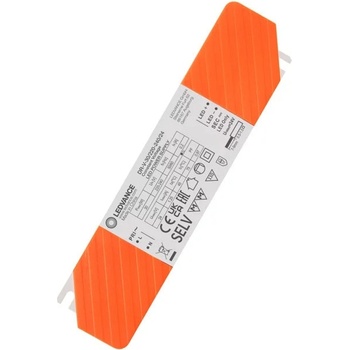

OSRAM LED захранване Ledvance DR-V, 30W, 24V, 18.6A

Product benefits

• Perfectly matched to 24 V LED flexible strips
• Excellent price/performance ratio
• Quick and simple installation
• Good efficiency and reliability



Areas of application

• Cove lighting, even in tight spaces
• Wallwasher effect lighting in living rooms, dining rooms, bedrooms, entrances
• For indoor SELV installations
• Offices, shopping centers, hospitals, restaurants, hotels



Prod uct features

• Integrated cable clamp for independent installation
• Lifetime: up to 35,000 h (at max. tc temperature)
• Type of protection: IP20
• Supply voltage: 220…240 V
• Operating frequency: 50/60 Hz
• Operated with less than 60 V: Safety extra-low voltage (SELV)
• Reversible overtemperature, overload, short-circuit and open-circuit protection



Specifications



Electrical data

Nominal wattage 30.00 WNominal output power 30 W 1)Nominal voltage 220…240 VNominal output voltage 24 V 2)Input voltage range 220…240 VInput voltage AC 198…264 V 3)U-OUT (working voltage) 24 VType of current DCNominal current 200 mANominal output current 1250 mA 4)Inrush current 18.6 AOutput ripple current (120 Hz) < 1 %Mains frequency 50…60 HzTotal harmonic distortion < 8 % 5)Power factor λ 0.97 6)ECG efficiency 89 % 7)Device power loss 2.2 W 8)Max. ECG no. on circuit breaker 10 A (B) 31Max. ECG no. on circuit breaker 16 A (B) 49Max. ECG no. on circuit breaker 25 A (B) 77Surge capability (L-N) 1 kVGalvanic isolation SELV

1) From 0 to 30 W
2) Maximum 24 V
3) Permitted voltage range
4) ±10%
5) At full load, 220…240 V, 50 Hz
6) Full load at 230 V
7) At full load and 230 V
8) At maximum LED load of 30 W


Dimensions & Weight

Length 162.00 mmMounting hole spacing, length 151.00 mmWidth 40.00 mmHeight 29.00 mmCable cross-section, input side 0.75…1.5 mm2Cable cross-section, output side 0.5…1.5 mm2Prewired NoWire preparation length, input side 7…9 mmWire preparation length, output side 7…9 mmProduct weight 115.00 g

Colors & materials

Product color WhiteCasing material PlasticBody material Plastic

Temperatures & operating conditions

Ambient temperature range -20…+45 °CMaximum temperature at tc test point 75 °CMax. housing temperature in case of fault 110 °CTemperature range in operation -20…+45 °CPermitted rel. humidity during operation 20…90 % 1)

1) Maximum 56 days/year at 90%


Lifespan

ECG lifetime 35000 h 1)

1) At maximum Tc = 85°C / 10% failure rate


Capabilities

Dimmable NoDimming interface Not dimmableOverheating protection YesOverload protection YesShort-circuit protection YesSuitable for fixtures with prot. class I, IISuitable for emergency lighting NoType of connection, output side Screwless terminal

Certificates & Standards

Approval marks – approval CE, UKCA, EACStandards Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384Protection class IIType of protection IP20

LOGISTICAL DATA

Temperature range at storage -25…+80 °C
