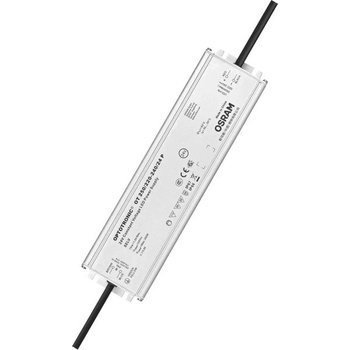

OSRAM LED захранване Osram Optotronic, 2250W, 24.2V, 75A

Product benefits

• Large range of products from 20 W to 250 W
• Installation in very cold and hot environments
• Very stable output power
• High electronical reversible short-circuit, overload, overtemperature protection
• Smart Power Supply: boosting power to turn on cold LEDs
• Independent installation possible



Ar eas of application

• Facades, public squares, cruise ships
• Signage
• Suitable for indoor and outdoor installations



Product features

• DC mode functionality
• Type of protection: IP66 and IP67
• Surge protection: up to 4 kV (L-N) / 6 kV (L/N-PE)
• Wide operating temperature range: -30…+55 °C
• Lifetime: up to 50,000 h (temperature at max. tc )



Specifications



Electrical data

Nominal wattage 2250.00 WNominal output power 250 WNominal voltage 220…240 VNominal output voltage 24.2 VInput voltage AC 198…264 VInput voltage DC 176…250 VInrush current 75 AMains frequency 0/60 HzTotal harmonic distortion < 15 %Power factor λ 0.95ECG efficiency 92 %Device power loss 21.7 WMax. ECG no. on circuit breaker 10 A (B) 3Max. ECG no. on circuit breaker 16 A (B) 8Max. ECG no. on circuit breaker 25 A (B) 13Surge capability (L/N-Ground) 6 kVSurge capability (L-N) 4 kVGalvanic isolation SELV

Dimensions & Weight

Length 265.00 mmMounting hole spacing, length 250,0 mmWidth 68.00 mmHeight 40.00 mmCable cross-section, input side 1 mm2Cable cross-section, output side 1.5 mm2Wire preparation length, input side 90 mmWire preparation length, output side 90 mmProduct weight 1340.00 g

Colors & materials

Casing material MetalBody material Metal

Temperatures & operating conditions

Ambient temperature range -30…+55 °CMaximum temperature at tc test point 85 °CMax. housing temperature in case of fault 110 °CPermitted rel. humidity during operation 5…85 % 1)

1) Maximum 56 days/year at 85 %


Lifespan

ECG lifetime 50000 h

Additional product data

Encapsulated Yes

Capabilities

Dimmable NoOverheating protection YesOverload protection YesShort-circuit protection YesNo-load proof YesSuitable for fixtures with prot. class IType of connection, output side Cables

Certificates & Standards

Approval marks – approval ENEC, RCM, CCC, EACStandards Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 61000-3-3, Acc. to EN 60598-1, Acc. to EN 62384Protection class IType of protection IP66/IP67

LOGISTICAL DATA

Temperature range at storage -40…+85 °C
