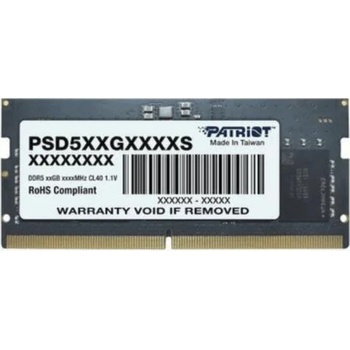

Patriot 16GB DDR5 5600MHz PSD516G560081S

Patriot's Signature Line DDR5 memory modules are designed to deliver an immense performance improvement for next generation Intel platforms. Requiring only 1.1V of power, Signature DDR5 modules consume less power and emit less heat despite the increased frequency and speed. Enhanced power improvements include an onboard Power Management IC (PMIC), which provides better control of local voltage regulation while delivering increased threshold protection, simultaneous monitoring, intelligent voltage, and power management. The Signature Line DDR5 series includes onboard thermal sensors to monitor and protect against thermal issues and better overall reporting. In addition, the latest on-die ECC (Error-Correcting Code) further enhances the accuracy of data-processing and your overall system's stability.

Features

Series: Signature Line
Form Factor: 262-Pin Small Outline Dual In-Line Memory
Module (SODIMM)
Technology: DDR5 Non-ECC Unbuffered
Capacity: 16GB (1x16GB)
Power Management IC (PMIC)
On-die ECC
Sideband access with I3C/I2C support
SPD Hub with thermal sensor
(Two) 2 Rank Single-sided module
100% Tested
RoHS Compliant

Specifications

Frequency: 5600MT/s (PC5-44800)
Timings: 46-46-46-90
Voltage: 1.1v
