PLANET FNSW-2401

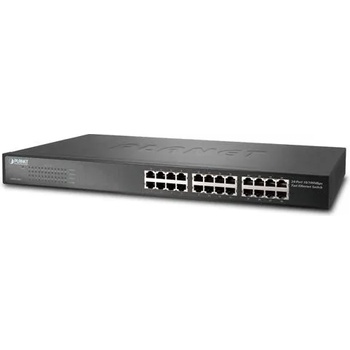

Planet FNSW-2401

Power-Saving, High Performance Ethernet Networking
In line with the energy-saving trend worldwide, PLANET delivers the new generation Green Networking Switch- FNSW-2401. The FNSW-2401 is a 24-port 10/100Base-TX Fast Ethernet Switch upgraded from earlier version and brings both benefits of energy saving and high performance. It is specially designed for SOHO, SMB and Workgroup users. The FNSW-2401 uses new engine that provides power saving up to 12% less energy but maintains high performance efficiently.

Physical Port
　 24 10/100Mbps Fast Ethernet ports
　 Supports auto MDI/MDI-X function

Hardware Specifications
10/100Base-TX MDI/MDIX Ports 24
Throughput (packet per second) 3.57Mpps
Switch Fabric 4.8Gbps
Weight 1.7kg
Power Consumption / Dissipation 4 watts / 13 BTU
Power Requirements 100~240V AC, 50/60Hz, 0.3A
Dimensions (W x D x H) 440 x 180 x 44mm, 1U height
Switch Processing Scheme Store-and-Forward
Address Table 8K entries
Packet Buffer 2Mbit SRAM
Power Green Ethernet 10m ~ 50m: Saving up to 12%
Flow Control Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Temperature Operating: 0~50 degrees C
Storage: -10~70 degrees C
Humidity Operating: 5% to 95%,
Storage: 5% to 95% (Non-condensing)

Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3x (Full-duplex Flow Control)
