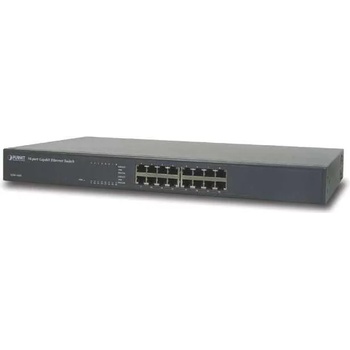

PLANET GSW-1601

Planet GSW-1601

Cost-effective Gigabit Solution for Enterprise Backbone and Data Center Networking
PLANET GSW-1601 Gigabit Ethernet Switch provides 16 RJ45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the correct transmission speed and half/full duplex mode of the attached devices with its 16 Gigabit ports that support 10K jumbo frame feature. Therefore, the GSW-1601 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.

Physical Port
16 10/100/1000BASE-T Gigabit Ethernet ports
Supports auto MDI/MDI-X function

Hardware Specifications
Hardware Version Version 7
10/100/1000BASE-T MDI/MDIX Ports 16
Throughput (packet per second) 23.8Mpps
Switch Fabric 32Gbps/non-blocking
Weight 1.8kg
Power Consumption/Dissipation 8.9 watts/30 BTU
Power Requirements 100-240V AC, 0.3A, 50/60Hz

Dimensions (W x D x H) 440 x 180 x 44 mm, 1U height
Switch Processing Scheme Store-and-Forward
Address Table 8K entries
Jumbo Packet Size 10K
Flow Control Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standard Compliance IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full-duplex flow control)

Environmental Specifications
Temperature Operating: 0~50 degrees C
Storage: -10~70 degrees C
Humidity Operating: 5~95 degrees C
Storage: 5~95 degrees C (non-condensing)
