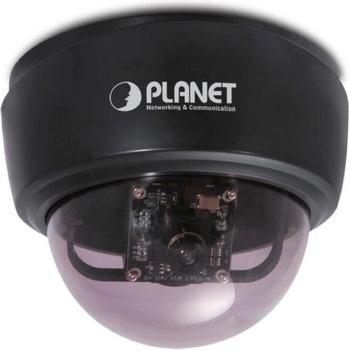

PLANET ICA-HM130

Planet ICA-HM130

Simultaneously providing H. 264, MPEG-4 and M-JPEG video streaming,
the PLANET ICA-HM130 is an 1.3 Mega-pixel CMOS image sensor Dome
Internet Camera which uses high resolution of SXGA (1280 x 1024 pixels)
for capturing color images. It is equipped with network and analog video
output interfaces for flexible viewing and recording implementations.
Compliant with IEEE 802.3af PoE (Power over Ethernet), the ICA-HM130
offers users the benefit of easy deployment of the cameras without
concerning the power outlet location. The ICA-HM130 also supports Store-
to-NAS function for saving the video file to a NAS (Network Attached
Storage) like PLANET NAS-7400 directly, which can save the PC resource
and keep monitoring surroundings with motion detection at 7/24. The
2-Way audio feature brings audio communication to both local and
remote sites by adding external microphone and speaker. Besides the web
browsers, it also provides 3GPP capability that enables users to view the
live video via a 3G mobile phone remotely.
The ICA-HM130 provides a real professional security environment to
protect your property and life. The ICA-HM130 supports the professional
management software, PLANET Cam Viewer Plus, for multi-camera video
surveillance application, and thus it can provide monitoring, recording
and event management functions. The Cam Viewer Plus helps you to
setup a comprehensive and effective surveillance system quickly and easily.
Working with the Cam Viewer Plus, the ICA-HM130 can be the most cost
efficient IP camera for multiplex occasions that could express video and
audio from everywhere at anytime over the Internet.

Key Features
Mega-Pixel resolution up to 1280x1024
Compliant with IEEE 802.3af PoE interface
3GPP for 3G mobile remote applications
Save-to-NAS function supported
Multi-Profile encoder supports H. 264, MPEG-4 and M-JPEG video
compression simultaneously
Easy configuration and management via Windows-Based utility or
web browser
DDNS, PPPoE and FTP uploading provides more alternatives in
surveillance network
Motion Detection feature can monitor any suspicious movement in
specific area
2-Way audio supported with external speaker and microphone

Specification

Video
Image Sensor 1.3 Mega-Pixel CMOS image sensor
Lens 4.3 mm, F1.8 fixed board
Illuminator 1.0V/lux-sec (550nm)
Signal to Noise 44 dB
Video Codec H. 264 / MPEG-4 / M-JPEG

Video Resolution
H. 264 SXGA / VGA / QVGA / QQVGA
MPEG-4 VGA / QVGA / QQVGA
M-JPEG SXGA / VGA / QVGA / QQVGA
Image Control AWB, AES

Audio Specification
Audio Codec G. 711 / G. 726 / AMR
Audio I/O Audio in: External Microphone / Audio out: External Speaker
Audio Streaming One-Way or Two-way
Audio Output Line Level out
Microphone External microphone input

Network and Configuration
Network Interface 1 x RJ-45, 10/100Base-TX
Network Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3af
Network Protocol TCP/IP, HTTP, SMTP, FTP, NTP, DNS,
DDNS, DHCP, UPnP, RTSP, PPPoE, 3GPP
Browser / Software Microsoft ® Internet Explorer 6.0 or later, Cam Viewer Plus Lite/Pro
Motion Detection 10 area definable
