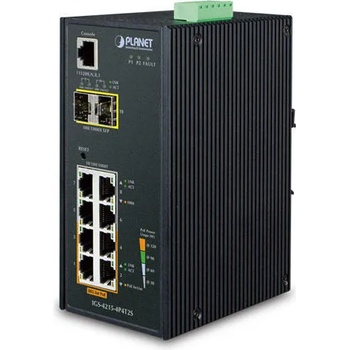

PLANET IGS-4215-4P4T2S

Product colour:Blue, WhiteLED indicators:Link, PoE, System, Activity, PowerWall mountable:YesInternational Protection (IP) code:IP30Rack mounting:NoHousing material:AluminiumDIN rail mounting:YesReset button:YesStackable:NoSafety:IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6Power consumption (typical):5.04 WDC input voltage:48 - 56 VInput current:3.5 APower consumption (max):152.96 WMAC address filtering:YesSecurity algorithms:SSH, 128-bit SSL, 802.1x RADIUS, SNMPIGMP snooping:YesAccess Control List (ACL):YesBPDU filtering/protection:YesDHCP features:DHCP clientSSH/SSL support:YesAuthentication:Port-based authenticationStatic port security:YesIP-MAC-Port binding:YesStorage temperature (T-T):-40 - 85 °COperating temperature (T-T):-40 - 75 °CHeat dissipation:523.8 BTU/hStorage relative humidity (H-H):5 - 95%Operating relative humidity (H-H):5 - 95%Web-based management:YesQuality of Service (QoS) support:YesARP inspection:YesSystem event log:YesSwitch layer:L2/L4Switch type:ManagedMIB support:RFC 1215, RFC 1493, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3635Traffic classification:YesDepth:107.3 mmWeight:1 kgWidth:76.8 mmHeight:152 mmNetworking standards:IEEE 802.1w, IEEE 802.3u, IEEE 802.1x, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1D, IEEE 802.3z, IEEE 802.1abNumber of VLANs:256Copper ethernet cabling technology:1000BASE-SX, 100BASE-TX, 1000BASE-LX, 10BASE-T, 100BASE-FXVLAN support:YesPort mirroring:YesAuto MDI/MDI-X:Yes10G support:NoLink aggregation:YesRate limiting:YesSpanning tree protocol:YesVirtual LAN features:Private VLAN, Protocol-based VLAN, Stacked VLANFlow control support:YesBroadcast storm control:YesFirmware upgradeable:YesBasic switching RJ-45 Ethernet ports quantity:8Basic switching RJ-45 Ethernet ports type:Gigabit Ethernet (10/100/1000)SFP module slots quantity:2Terminal block port:YesHarmonized System (HS) code:85176990Jumbo frames support:YesSwitching capacity:20 Gbit/sPacket buffer memory:4.1 MBMAC address table:8000 entriesThroughput:14.8 MppsStore-and-forward:YesJumbo frames:10000Number of trunks:4Power over Ethernet (PoE):YesTotal Power over Ethernet (PoE) budget:144 WPower over Ethernet (PoE) ports quantity:4Power over Ethernet (PoE) voltage range:48 - 56 VMulticast support:YesNumber of multicast groups filtered:256Fiber ethernet cabling technology:100BASE-FX, 1000BASE‑LX, 1000BASE‑BX, 1000BASE‑SX
