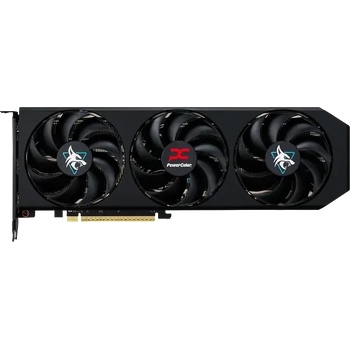

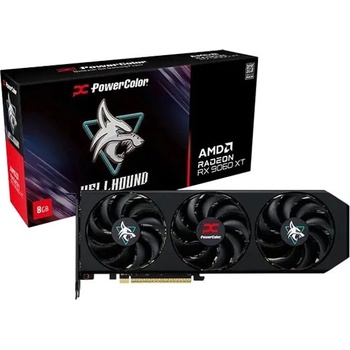

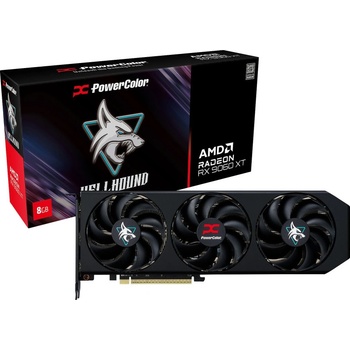

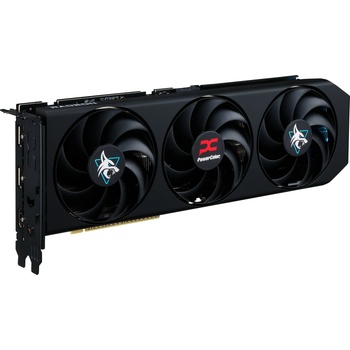

PowerColor Radeon RX 9060 XT Hellhound 8GB GDDR6 128bit (RX9060XT 8G-L/OC)

High-Efficiency DrMOS Power Module

Reduce Power Loss during transmission, Ensure Longer-Lasting Performance and Reliability.

Hellhound features a 5+1 phase power design, along with a dedicated 2+1 phase memory power supply. It is equipped with conductive polymer capacitors, offering thermal stability and durability.



Premium-Quality PCB

Enhanced Signal Stability for Uninterrupted Performance

Crafted with 6-layer high-thermal conductivity material with a 2oz power layer, ensure better signal stability during high-frequency transmission.



Features

• Honeywell PTM7950 High-Thermal Conductivity
• Dual BIOS (OC / Silent)
• Intelligent Fan Control
• Highly Efficient Ring Blade Fans
• Reinforced Metal Backplate
• Premium-Quality PCB Design
• High-Efficiency DrMOS Power Module
• TBP Monitoring (12V Source Detection)
• LED Lighting - Artic Blue
• Triple-Ring Fan design
• Supports PCIe 5.0 x16



Specific ation  Graphics Engine AMD Radeon RX 9060 XTModel Name RX9060XT 8G-L/OCSeries HellhoundStream Processors 2048 UnitsVideo Memory 8GB GDDR6Memory Speed 20.0 GbpsMemory Interface 128-bitEngine Clock (OC Mode) Up to 2740 MHz (Game)¹ / Up to 3310 MHz (Boost)2Engine Clock (Silent Mode) Up to 2620 MHz (Game)¹ / Up to 3230 MHz (Boost)2Bus Standard PCIe 5.0 x16Display Connectors 1 x HDMI 2.1b, 2 x DisplayPort 2.1aDirectX® Support 12OpenGL Support 4.6AMD Eyefinity Technology SupportedAMD Stream Technology SupportedAMD Smart Access Memory SupportedMaximum Resolution (DP) 7680×4320Maximum Resolution (HDMI) 7680×4320Board Dimensions 310mm × 100mm × 40mmDimensions (with bracket) 330mm × 120mm × 40mmSlot Requirement 2 SlotsMinimum System Power (W) 550W
