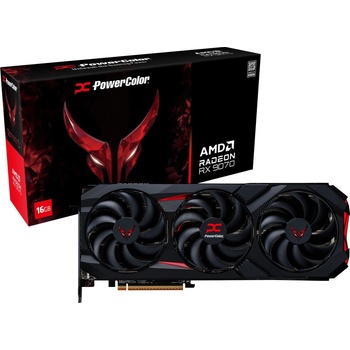

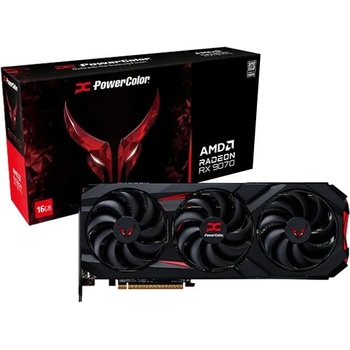

PowerColor Radeon RX 9070 Red Devil OC 16GB GDDR6 256bit (RX9070 16G-E/OC)

The Ultimate Weapon in Gaming:
The Red Devil emerges as the unparalleled force in gaming, pushing performance to its absolute peak. Powered by AMD's cutting-edge RDNA 4 architecture and equipped with PowerColor's advanced, whisper-quiet cooling system, it delivers exceptional performance and immersive gameplay. At its core lies the Hellstone, a breathtaking design element where vibrant RGB lighting pulses with an otherworldly glow, embodying fiery power and precision. This symbolic feature not only illuminates but represents the Red Devil’s boundless strength, leading gamers through the darkness to ultimate victory.

Specifications

Stream Processor
3584 Units

Video Memory
16GB GDDR6

Memory Speed
20.0 Gbps

Memory Interface
256-bit

Engine Clock(OC)
up to 2210MHz(Game)
up to 2700MHz(Boost)

Engine Clock(STD/Silent)
up to 2170MHz(Game)
up to 2650MHz(Boost)

Bus Standard
PCIE 5.0 x16

Standard Display Connectors
1 x HDMI 2.1b，3 x DisplayPort 2.1a (only 2x simultaneous DP2.1 connections can be supported)

DirectX Support
12

OpenGL
4.6

AMD Eyefinity Technology
Support

AMD Stream Technology
Support

AMD Smart Access Memory
Support

Maximum Resolution
DisplayPort: 7680×4320
HDMI: 7680×4320

Power Specs + Board Dimensions:
Board Dimensions
340mm*132mm*69mm
352mm*149mm*69mm (with bracket)

Slot
3

Minimum System Power requirement (W)
800W

Extension Power Connector
Two 8-pin PCI Express Power connectors

Notes
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.

Recommended power supply for AMD Radeon RX 9070 graphics card is minimum 800W or greater power supply with 12V output > 75A. Minimum recommended system power supply wattage is based on a PC configured with an AMD Ryzen 9 7950X processor plus typical power requirements of other system components. Your system requirements may differ.
