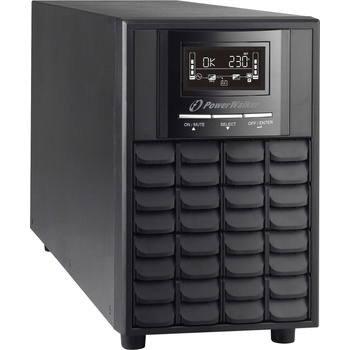

PowerWalker VI 3000 CW (10121133)

PowerWalker VI 3000 CW

General features
Type: Line-Interactive
Power capacity: 3000VA / 2100W
Output Power Factor: 0.70

Input
Input Voltage Range: 162-290 VAC
Frequency (Synchronized Range): 50Hz or 60Hz

Output
Nominal Output Voltage: 208/220/230/240 VAC
Pure Sine Wave: Yes
THDv: ≤2% @ 100% linear load, ≤5% @ 100% non-linear load (before low battery alarm)
Voltage Regulation (Bat. Mod. ): ±1.5% (before battery alarm)
Frequency (Battery Mode): ±1Hz

Technical details
Load Crest Ratio: 3:1
Transfer Time [AC to Battery]: 2-6ms (typical, 10ms max)
Charger 1.4A
Protection: Overload, discharge, and overcharge protection
Fan Logic: Controlled by adjusting fan speed in 5% steps.
Fan off under 40degC; line mode; batteries charged
LCD Indicators AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Low Battery

Efficiency
LINE mode full Load: 96.0%
BATTERY mode full Load: 90.0%

Batteries and autonomy time
Batteries: 4x 12V/9Ah
DC Voltage: 4 x 12V
Recharge Time: 4h to 90%
Full Load Backup Time: 2.3min
Half Load Backup Time: 9min

Connections and communication
IEC C13 Outlet: 8
Programmable Outlets: Yes
Input: C20
Software: ViewPower
USB port: Yes
HID Support: Yes
RS-232 Port: Yes
Extension Slot: Yes, 1
EPO Port: Yes

Environment
Noise Level: < 45dB
Temperature: 0°C – 40°C
Humidity: 20% - 90% RH (non-condensing)
