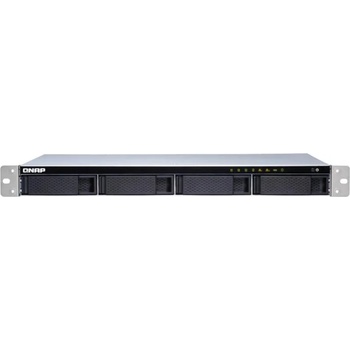

QNAP TS-432PXU-2G

Qnap TS-432PXU-2G

CPU
AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor

CPU Architecture
64-bit ARM

Floating Point Unit:
Yes

Encryption Engine:
Yes

System Memory
2 GB UDIMM DDR4 (1 x 2 GB)

Maximum Memory
16 GB (1 x 16 GB)

Memory Slot
1 x UDIMM DDR4

Flash Memory
512 MB (Dual boot OS protection)

Drive Bay
4 x 3.5" SATA 6Gb/s, 3Gb/s

Drive Compatibility
3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Hot-swappable:
Yes

M. 2 Slot
Optional via a PCIe adapter

SSD Cache Acceleration Support:
Yes

2.5 Gigabit Ethernet Port (2.5G/1G/100M)
2 (2.5G/1G/100M/10M)

10 Gigabit Ethernet Port
2 x 10GbE SFP+

Wake on LAN (WOL):
Yes

Only the 2.5GbE port
Jumbo Frame

PCIe Slot
1

Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance.

USB 3.2 Gen 1 port
4

Form Factor
1U Rackmount

LED Indicators
HDD 1-4, Status, LAN, Storage expansion

Buttons
Power, Reset

Dimensions (HxWxD)
44 × 439 × 499 mm

Weight (Net)
6.53 kg

Weight (Gross)
9.53 kg

Operating Temperature
0 - 40 °C (32°F - 104°F)

Storage Temperature
-20 - 70°C (-4°F - 158°F)

Relative Humidity
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit
250W PSU, 100 - 240V

Power Consumption: Operating Mode, Typical: 39.558 W
Tested with drives fully populated.

Fan
2 x 40mm, 12VDC

System Warning Buzzer

Max. Number of Concurrent Connections (CIFS) - with Max. Memory
700
