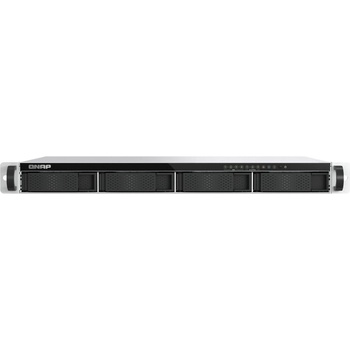

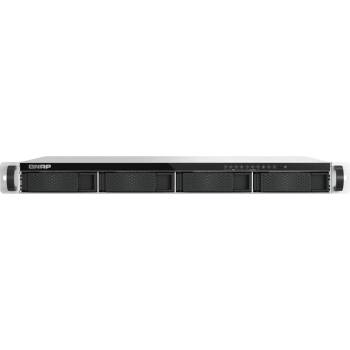

QNAP TS-H765EU-8G

Qnap TS-h765eU-8G



The 1U short-depth rackmount TS-h765eU is designed for space-constrained environments, offering an efficient and reliable storage solution for various needs. Adopting the latest Intel® Atom x7000C Series processor, the TS-h765eU comes with four 3.5-inch drive bays and three E1. S / M. 2 PCIe NVMe slots for exceptional expandability, making it an ideal NAS for high performance and multitasking demands. The TS-h765eU runs the ZFS-based QuTS hero operating system that ensures data integrity and WORM protection for data immutability.



1U short-depth design for flexible deployment

The TS-h765eU has a shorter chassis depth of only 12 inches (292.1mm), making it easy to install in small cabinets and various space-limited environments, including factories, small offices, surveillance rooms, audiovisual rooms, or in-vehicle applications.





Surpass the competitor with standard 2.5GbE and flexible 10GbE upgrade

In modern business IT, a NAS with only 1GbE is a performance bottleneck. The TS-h765eU comes with faster network connectivity which



 CPU Intel Atom x7405C 4-core, up to 3.4GHzCPU Architecture 64-bit x86Floating Point Unit  Encryption Engine (AES-NI)System Memory 8 GB SODIMM DDR5, enabled in-band ECCMaximum Memory 16 GB (1 x 16GB)Memory Slot 1 x SODIMM DDR5Flash Memory 8GB (Dual boot OS protection)Drive Bay 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
3 x E1. S up to 15mm (Pre-install adapter to support M. 2 2280 for each slots)Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
E1. S NVMe PCIe SSDs
M. 2 2280 NVMe PCIe SSDsHot-swappable (Not supported M. 2 SSD)M. 2 Slot 3 x E1. S up to 15mm (Pre-install adapter to support M. 2 2280 for each slots)SSD Cache Acceleration Support  2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)10 Gigabit Ethernet Port Optional via QXG-ES10G1TWake on LAN (WOL)  Jumbo Frame  USB 2.0 port 1USB 3.2 Gen 2 (10Gbps) Port 1 x Type-A USB 3.2 Gen 2 10GbpsForm Factor 1U Short Depth RackmountLED Indicators Power/Status, LAN, USB, HDD1-4, E1. S/PCIe SSD1~3Buttons Power, ResetDimensions (HxWxD) 43 × 430 × 292.1 mmWeight (Net) 4.51 kgOperating Temperature 0 - 40 °C (32°F - 104°F)Storage Temperature -20 - 70°C (-4°F - 158°F)Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)Power Supply Unit 150W, 100-240VFan 3 x 40mmSystem Warning Buzzer
