RCF Дигитален процесор RCF - Модел Dx4008

Процесор дигитален

FEATURES

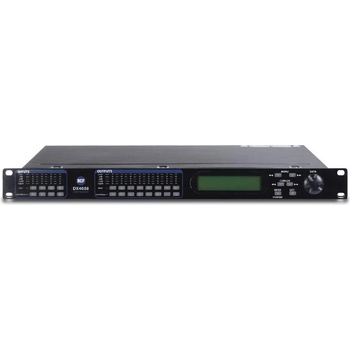

The DX 4008 is a complete 4 input - 8 output digital loudspeaker management system designed for the touring or fixed sound installation markets
Sampling rate can be set to 96kHz
Precise frequency control is achieved with its 1 Hz resolution
Inputs and outputs can be routed in multiple configuration to meet any requirements
The GUI application makes much easier control and monitor the device, allowing the user to get the whole picture on one screen
Programs can be recalled and stored from/to PC's hard drive, thus expanding the storage to become virtuality limitless

The DX 4008 is shipped with a special PC Graphic User Interface (GUI) application - XLink
XLink gives the user an option to control the DX 4008 unit from a remote PC via the RS232 serial communication link

INPUT AND OUTPUT SECTION
Input Impendance:>10 k
Output Impendance:50
Maximum Level:+ 20 dBu
Type:XLR 3 Electronically balanced

DIGITAL AUDIO PERFORMANCE
Resolution:32 bit (40-bit extended)
Sampling Rate:48 / 96 kHz
A/D - D/A Converters:24 bit
Propagation Delay:3 ms
No. of Programs:30

AUDIO PERFORMANCE
Frequency Response:+/- 0.1 dB (20 to 20 kHz)
Dynamic Range:115 dB typ (unweighted)
CMMR:> 60 dB (50 to 10 kHz)
Crosstalk:< -100 dB
Distortion:0.001% (1 kHz @ 18 dBu)

FRONT PANEL CONTROL
Display:4 x 26 Character Backlit LCD
Level Meters:5 segment LED
Interface:RS 232 Female DB-9

Buttons:12 Mute Controls 12 Gain / Manu Controls 6 Menu Controls
"DATA" control:(dial encoder) Embedded Thumb Wheel

LIMITERS
Threshold:-20 to +20 dBu
Release Time:2 to 32 X the attack time

Attack Time:0.3 to 100 ms

EQUALISATION
Bandwidth:(Q=0.5 to 72) 0.02 to 2.50 octaves

Type:Parametric, Hi-shelf, Lo-shelf 6 per I/O
Gain:in 0.25dB steps -30 to +15dB

CROSSOVER FILTERS
Filter Types:Butterworth, Bessel, Linkwitz Riley
Operating temperature range:0 ÷ +55 °C
Operating humidity:20 ÷ 90 % RH non-condensing

Slopes:6 to 24dB/oct (96kHz) 6 to 48dB/oct (48kHz)
POWER REQUIREMENT
Operating voltage:220÷240 / 110÷120 ~ 50 / 60 V ~ Hz

PHISICAL SPECIFICATION
Depth:203 / 7.99 mm/inch
Net Weight:Kg/Lbs 3 / 6.61

Height:44 / 1.73 mm/inch
Width:483 / 19.01 mm/inch

SHIPPING INFORMATION
Package depth:360 / 14.17 mm/inch
Shipping Weight:4.3 / 9.4 Kg/Lbs

Package height:80 / 3.14 mm/inch
Package width:615 / 24.2 mm/inch
