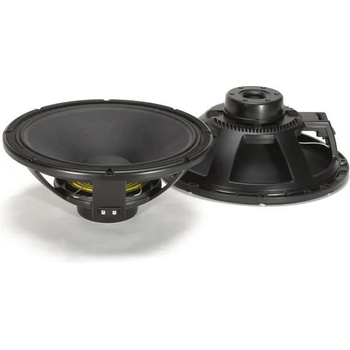

RCF MB15N351
Говорител - 15" - 650W RMS - 100dB - 40Hz-3000Hz FEATURES 3.5-inch, inside/outside copper voice coil 1300W continuous program power handling 100 dB Sensitivity 40 Hz - 3...
386,54 €|756,01 лв.*
(2,81 €) Доставка 5,50 лв.,В рамките на 3 дни
Вид:
Най-евтини оферти (1)
RCF MB15N351
Говорител rcf - Модел mb15n351
Описание на продукта
Говорител - 15" - 650W RMS - 100dB - 40Hz-3000Hz FEATURES 3.5-inch, inside/outside copper voice coil 1300W continuous program power handling 100 dB Sensitivity 40 Hz - 3...
Параметри на продукта
Производител
RCF
Параметри на продукта
Производител
RCF
Описание на продукта
Говорител - 15" - 650W RMS - 100dB - 40Hz-3000Hz
FEATURES
3.5-inch, inside/outside copper voice coil
1300W continuous program power handling
100 dB Sensitivity
40 Hz - 3 kHz Frequency range
Dual-forced air ventilation for minimum power compression
Dual spider design with silicon based dampening control
GENERAL SPECIFICATIONS
Nominal Diameter:380/15 mm/inch
Rated Impedance:8
Program Power:1300 W AES
Power handling capacity:650 W AES
Sensitivity:100 dB
Frequency Range:40 Hz ÷ 3000 Hz
Effective Piston Diameter:330 / 13 mm/inch
Max Excursion Before Damage (peak to peak):39 / 1.5 mm/inch
Minimum Impedance:6.8
Voice Coil Diameter:87 / 3.4 mm/inch
Voice Coil Material:Copper
Voice Coil Winding Depth:16.5 / 0.65 mm/inch
Number of layers:2
Kind of layer:inside/outside
Top Plate Thickness:11 / 0.43 mm/inch
Cone Material:No pressed pulp
Cone Design:Curved
Surround Material:Polycotton
Surround Design:M - roll
THIELE/SMALL PARAMETERS
DC resistance:5.6
Mechanical factor:4.0
Electrical factor:0.24
Total factor:0.22
BL Factor:22.5 T · m
Effective Moving Mass:80 g
Equivalent Cas air load:191 liters
Effettive piston area:0.0855 m2
Max. linear excursion (mathematical):5.5 mm
Voice - coil inductance @ 1kHz:1.65 mH
Half-space efficiency:5.68%
MOUNTING INFORMATION
Overall Diameter:393 / 15.5 mm/inch
Bolt Circle Diameter:371-376 / 14.6-14.8 mm/inch
Bolt Hole Diameter:6.5 / 0.3 mm/inch
Front Mount Baffle Cut-out:354/13.9 mm/inch
Rear Mount Baffle Cut-out:354 / 13.9 mm/inch
Depth:164 / 6.4 mm/inch
Volume occupied by the driver:3.8 / 0.13 liters/ft³
Net Weight:5.0 / 11.0 kg/lbs
SHIPPING INFORMATION
Shipping weight:5.8 / 12.7 kg/lbs
