ASUS RT-AX52

ASUS RT-AX52 (AX1800) Dual Band WiFi 6 Extendable Router, Instant Guard, Parental Control Scheduling, Built-in VPN, AiMesh Compatible

• N ew-Gen WiFi Standard – Supporting 802.11ax WiFi standard for better efficiency and throughput.
• Ultra-fast WiFi Speed – RT-AX52 supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band.
• Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicating with multiple devices simultaneously
• Easy Extendable Network – Enjoy seamless roaming with rich, advanced features by adding any AiMesh-compatible router.





B SS Coloring Boosts Connection Efficiency

WiFi 6 includes a new feature called BSS Coloring that improves WiFi connection efficiency even in crowded environments. When two neighboring routers send traffic on the same channel, your router has to wait until the channel is free. With BSS Coloring, your WiFi 6 router identifies its data with a unique channel tag ('color') that's different from neighboring networks. Your WiFi 6 router can then ignore other-colored signals on the channel and send data immediately. * This greatly reduces router waiting times and boosts network efficiency.





The Latest WPA3 Network Security

The next generation of WiFi security, bringing new capabilities to enhance WiFi protections in personal networks. Building on the widespread adoption of WPA2 over more than a decade, WPA3 adds new features to simplify WiFi security, enable more robust authentication, and deliver increased cryptographic strength for highly sensitive data markets.

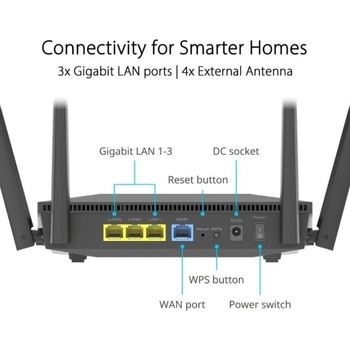

CategorySpecificationNe twork Standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), IPv4, IPv6Product Segment AX1800 ultimate AX performance: 1201 Mbps + 574 MbpsWiFi Data Rate 802.11a: up to 54 Mbps802.11b: up to 11 Mbps802.11g: up to 54 MbpsWiFi 4: up to 300 MbpsWiFi 5: up to 867 MbpsWiFi 6 (2.4GHz): up to 574 MbpsWiFi 6 (5GHz): up to 1201 MbpsAntenna External antenna × 4Transmit / Receive 2.4GHz: 2×25GHz: 2×2Processor 1.3GHz dual-core processorMemory 128 MB Flash, 256 MB RAMBoosts Speed OFDMA, Beamforming (standard-based and universal), 1024-QAM, 20/40/80 MHz bandwidthOperating Frequency 2.4GHz / 5GHzOperating Mode Access Point, AiMesh Node, Repeater, RouterI/O Ports 1× RJ45 for Gigabit WAN3× RJ45 for Gigabit LANButtons WPS, Reset, Power SwitchLED Indicators Power ×1, WAN ×1, LAN ×3, 2.4G ×1, 5G ×1, WPS ×1Power Supply AC Input: 110V240V (5060Hz)DC Output: 12V, 1A maxPackage Contents RT-AX52, RJ45 Ethernet Cable, Power Adapter, Quick Start Guide, Warranty CardProduct Weight 298gProduct Dimensions 192 × 126.3 × 47.5 mm (WxDxH)AiMesh Primary AiMesh Router, AiMesh NodeParental Control Block access to unwanted websites and apps, Customized Internet ScheduleGuest Network Internet access for guests with local network restrictionsSecurity Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, SSH, FirewallVPN VPN Client: L2TP, OpenVPN, PPTPVPN Server: IPSec, OpenVPN, PPTPInstant Guard SupportedTraffic Control Bandwidth Limiter, Traditional QoS, Real-time/Wired/Wireless Traffic MonitorWAN Internet Connection Type: PPPoE, PPTP, L2TP, Automatic IP, Static IPDual WAN, Port Triggering, DMZ, DDNSLAN DHCP Server, IGMP Snooping, IPTV, Manually Assign IP, Wake on LANWireless UTF-8 SSID, WiFi MAC Address Filter, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal and Explicit BeamformingAdministrationConfigu ration Backup and Restore, Diagnosis tools, Feedback System, System Log
