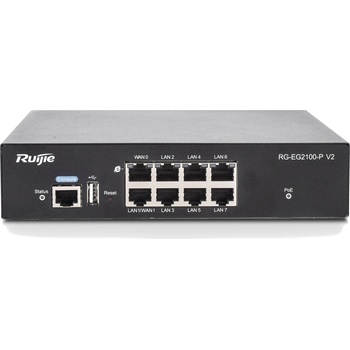

Ruijie EG2100-P V2

RG-EG2100-P V2

Ruijie EasyGate (EG) Next-generation Unified Security Gateway is a multi-functional Cloud Managed Security Gateway product for various industries.

Equipped with high-performance multi-core MIPS hardware architecture, the EG Gateway supports a wide range of features such as high-performance NAT, WAN load balancing, smart flow control, online behavior management, visualized IPsec VPN , web authentication, etc.

Taking advantage of integrated Hard Disk Drive  (HDD), the EG Security Gateway can provide local storage for Internet activities logging, which is essential for National Internet Security Compliance in many countries.

Ruijie EG Next-generation Unified Security Gateway is also supported by Ruijie Cloud, altogether with switches and wireless access points, Ruijie Cloud can provide a comprehensive secure networking platform for centralized management allowing for device monitoring, configuration as well as firmware management.

For ease of provisioning, Ruijie provide an innovative Mobile App Dummy Provisioning  for SME customers. In less than 3-min, user can complete the Gateway initial setup with Internet connectivity, without any PC setup or cable installation.



Feature highlights of Ruijie EG Next-generation Security Gateway Series:

Smart Flow Control & AAA Integration

User Online Behavior Management

VPN & Traffic Visualization

FREE Cloud Management

App Caching for Download Acceleration

Built-in Internet Audit Log Storage (EG3250)

Built-in Power-Over-Ethernet Integration (EG-2100-P v2)

Mobile App Dummy Provisioning (EG-2100-P v2)



Hardware SpecificationCPU Multi-core MIPSFixed Ports 8 1000BASE-T ports (7x POE/POE+)WAN Ports Upto 2Flash 4GB EMMCHard Disk N/AMemory 512MPerformance & FeaturePerformance 1000Mbps (1518 bytes)450Mbps (512bytes)70Mbps (64 bytes)Concurrent Session 100,000Recommended Concurrent User 300Portal Authentication Capacity 100 (Max Concurrent Users)Portal Authentication Type

Username/Password Auth (Local, Windows-based AD/LDAP Integration)

One-click Authentication;

Guest Voucher (Ruijie Cloud required);

Seamless Authentication (Portal) SupportApp Caching SupportCache Capacity 750MBCache Resources Android APK files (non-https server required)Network Protocol

Support TCP/IP protocols, including IP, ICMP, TCP, UDP, etc.

Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF

Support DHCP Relay and DHCP Server

Support PPPoE Client

Support NAT and multiple NAT ALG including FTP, H. 323, DNS, etc.

Support ARP, trusted ARP, proxy ARP, etc.

Support Ping and Traceroute fault detection

Application Visibility

Support self-developed 43 types of applications / more than 120 application features, customizable protocol identification:



P2P: BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc.



Multimedia: YouTube, Facebook Video, WebEx Conference & etc.



Social Media: Facebook, Twitter, LinkedIn, Pinterest & etc.



VOIP/Chat: Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc.



Instant Messaging/Email: Gmail, MSN, QQ, YAHOO & etc.



Software Update: Window, McAfee, Kaspersky, ESET & etc.



Cloud-based File Collaboration: GoogleDrive, Dropbox, OneDrive, iCloud & etc.



Enterprise Application：HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS & etc.



URL Filtering Support custom URLs
Support remote HTTP automatic URL library upgrade
Local log storage (NAT log, traffic log, URL log, etc. )
Support storage on external log serverWAN Load Balancing Support (upto 2 WAN Port)IPsec VPN Tunnel 16Network Security Anti-ARP Spoofing
Defense against malicious attacks from internal and external networks
Support secure address binding
Block WAN Ping
Prevent Port Scan Attack
Prevent Fragmentation Attack
Prevent ICMP Flood Attack
Prevent Teardrop Attack
Prevent Ping of Death Attack
Prevent Land Attack
Prevent Smurf / Fraggle attack
Prevent SYN Flood AttackRuijie Cloud Integration Feature

Support device health monitoring status

Support centralized configuration change management & backup

Support Top 10 Application/User traffic visualization

Support device firmware management

Support event-based alarm notification

Other Features Integrate with AAA software to support multiple authentication modes

Other Features

Service and Support

Support push advertising pageSupport multi-link load balancingSupport remote HTTP online upgrade for signature library, software version, etc. Lifetime Free signature library upgradeRack Height 1UWeight 2KGPower Supply 100-240V~, 50-60Hz, 3APoE Budget 135WPower Consumption
