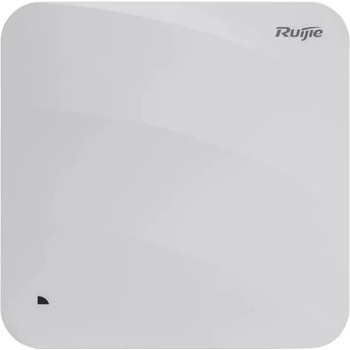

Ruijie RG-AP820-L AX3000 V3

RG-AP820-L(V3), Wi-Fi 6 AX3000 Indoor AP



Indoor scenarios for higher education, government, general education, finance, and business sectors.

Highlight Features

• 2.5 Gbps SFP Port, Multi-Gigabit Networking
• Next-generation AX3000 chip, supporting 160 MHz 2.976 Gbps
• Next-generation Wi-Fi 6 technology, higher concurrency, lower latency
• Unified cloud management, intelligent tuning, easy O&M



Ultimat e Speed and Capacity with Wi-Fi 6, Up To 2.976 Gbpss





Hardware SpecificationsDimension s and Weight RG-AP820-L(V3)

Unit dimensions

(W x D x H)

220 mm x 220 mm x 49 mm (8.66 in. x 8.66 in. x 1.93 in. )

Shipping dimensions

(W x D x H)

514 mm x 326 mm x 292 mm (20.24 in. x 12.83 in. x 11.50 in. )Unit weight

Main unit: 0.6 kg (1.32 lbs)

Mounting bracket: 0.2 kg (0.44 lbs)

Shipping weight 8.46 kg (18.65 lbs)Mounting Wall/Ceiling-mount (a mounting bracket is delivered with the main unit)Lock option Kensington lock and securing latch



Wi-Fi Radio RG-AP820-L(V3)Radio design

Dual-radio and up to four spatial streams:

● Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO

● Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO

Operating frequencies

Radio 1,  802.11b/g/n/ax:

● 2.400 GHz to 2.4835 GHz, ISM

Radio 2,  802.11a/n/ac/ax:

● 5.150 GHz to 5.250 GHz, U-NII-1

● 5.250 GHz to 5.350 GHz, U-NII-2A

● 5.470 GHz to 5.725 GHz, U-NII-2C

● 5.725 GHz to 5.850 GHz, U-NII-3/ISM



Country-speci fic restrictions apply:

Egypt

Radio 1: 802.11b/g/n: 2.400 GHz to 2.4835 GHz

Radio 2: 802.11a/n/ac: 5.150 GHz to 5.350 GHz

Data rates

Combined peak data rate: 2.976 Gbps

2.4 GHz radio

● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum)

● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical)

5 GHz radio

● Two spatial stream Single User (SU) MIMO for up to 2.402 Gbps wireless data rate to individual 2SS HE160 802.11ax client devices (maximum)

● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)

Data rate set

The following 802.11-compliant data rates in Mbps are supported:

2.4 GHz radio

● 802.11b: 1, 2, 5.5, 11

● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

5 GHz radio

● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

● 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160)

● 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)

Packet aggregation 802.11n/ac/ax: A-MPDU and A-MSDUAntenna type Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas)Antenna gain

2.4 GHz: 5 dBi

5 GHz: 5 dBi

Maximum transmit power

2.4 GHz radio: 26 dBm (23 dBm per chain)

5 GHz radio: 26 dBm (23 dBm per chain)





Thailand< /p>

2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm

5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm

5.470 GHz to 5.725 GHz, EIRP ≤ 30 dBm

5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm



Egypt

2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm

5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm

Power increment Configurable in increments of 1 dBmRadio technologies

802.11b: Direct-Sequence Spread-Spectrum (DSSS)

802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)

802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)

Modulation types

802.11b: BPSK,  QPSK,  CCK

802.11a/g/n: BPSK,  QPSK,  16-QAM,  64-QAM

802.11ac: BPSK,  QPSK,  16-QAM,  64-QAM, 256-QAM

802.11ax: BPSK,  QPSK,  16-QAM,  64-QAM,  256-QAM,  1024-QAM



The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.

Wi-Fi Radio Frequency Performance RG-AP820-L(V3)Frequency Band and Protocol Data Rate Maximum Transmit Power per Transmit Chain Maximum Receive Sensitivity per Receive Chain2.4 GHz 802.11b 1 Mbps 23 dBm -91 dBm2 Mbps 23 dBm -91 dBm5.5 Mbps 23 dBm -90 dBm11 Mbps 23 dBm -87 dBm2.4 GHz 802.11g 6 Mbps 23 dBm -89 dBm24 Mbps 22 dBm -82 dBm36 Mbps 22 dBm -78 dBm54 Mbps 20 dBm -72 dBm2.4 GHz 802.11n (HT20) MCS0 23 dBm -85dBmMCS7 19 dBm -67 dBm2.4 GHz 802.11n (HT40) MCS0 23 dBm -82 dBmMCS7 19 dBm -64 dBm2.4 GHz 802.11ax (HE20) MCS0 23 dBm -85 dBmMCS11 15 dBm -58 dBm2.4 GHz 802.11ax (HE40) MCS0 23 dBm -82 dBmMCS11 15 dBm -54 dBm5 GHz 802.11a 6 Mbps 23 dBm -89 dBm24 Mbps 22 dBm -82 dBm36 Mbps 22 dBm -78 dBm54 Mbps 20 dBm -72 dBm5 GHz 802.11n (HT20) MCS0 23 dBm -85 dBmMCS7 19 dBm -67 dBm5 GHz 802.11n (HT40) MCS0 23 dBm -82 dBmMCS7 19 dBm -64 dBm5 GHz 802.11ac (VHT20) MCS0 23 dBm -85 dBmMCS9 18 dBm -60 dBm5 GHz 802.11ac (VHT40) MCS0 23 dBm -82 dBmMCS9 18 dBm -57 dBm5 GHz 802.11ac (VHT80) MCS0 23 dBm -79 dBmMCS9 18 dBm -53 dBm5 GHz 802.11ax (HE20) MCS0 23 dBm -85 dBmMCS11 16 dBm -58 dBm5 GHz 802.11ax (HE40) MCS0 23 dBm -82 dBmMCS11 16 dBm -54 dBm5 GHz 802.11ax (HE80) MCS0 23 dBm -79 dBmMCS11 16 dBm -52 dBm5 GHz 802.11ax (HE160) MCS0 23 dBm -77 dBmMCS11 16 dBm -50 dBm



Bluetooth RadioRG-AP820-L(V3)Bluetooth Bluetooth 5.1Antenna type Onboard omnidirectional antennaMaximum antenna gain 2.4 dBi, with a downtilt angle of roughly 30 degreesMaximum transmit power

17 dBm (GFSK)

14 dBm (π/4-DQPSK,  8-DPSK)

Receive sensitivity

–95.5 dBm (DH5)

–95 dBm (π/4-DQPSK)

–87.5 dBm (8-DPSK)




Ports Specifications RG-AP820-L(V3)Fixed service port

1 x 10/100/1000BASE-T port

● In compliance with IEEE 802.3af standard (PoE)

● Auto MDI/MDIX crossover

● PoE-PD:  54 V DC (nominal) 802.3af/at/bt (Class 3 or higher)

● 802.3az EEE

1 x 2.5GE SFP/RJ45 combo port, compatibility with 1GE module, shared with one 10/100/1000BASE-T port

Fixed management port 1 x RJ45 console port (serial console port)Status LED 1 x multi-color system status LEDButton

1 x Reset button

● Press the button for shorter than 2 seconds. Then the device restarts.

● Press the button for longer than 5 seconds. Then the device restores to factory settings.

Note：A combo port consists of an optical Ethernet port and an electrical Ethernet port on the panel and can be used as the optical or electrical port at one time. When either of the Ethernet ports is working, the other port is automatically shut down. You can select a port type as required.



Power Supply and Consumption RG-AP820-L(V3)Input power supply

The AP supports the following two power supply modes:

● 48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately.

● PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af standard (PoE).

Note:

● If both DC power and PoE are available, DC power is preferred.

Overall power consumption

Maximum power consumption: 12.95 W

● DC powered: 12.95 W

● PoE powered (802.3af): 12.95 W

● PoE+ powered (802.3at): 12.95 W

● PoE++ powered (802.3bt): 12.95 W

● Idle mode: 6 W

 Note：When the 2.5GE SFP port of the RG-AP820-L(V3) is used as an uplink port, the port supports PoE or DC power supply. When PoE is adopted, the auto-negotiation Ethernet port (LAN/1G/PoE) serves as a PoE-in port only.



Environment and Reliability RG-AP820-L(V3)Temperatu re

Operating temperature: –10°C to +50°C (14°F to +122°F)

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Note: At an altitude in the range of 3,000–5,000 m (9,842. 52–16,404. 20 ft. ), every time the altitude increases by 220 m (722 ft), the maximum temperature decreases by 1°C (1.8°F).

IP rating IP41Humidity

Operating humidity: 0% RH to 95% RH (non-condensing)

Storage humidity: 0% RH to 95% RH (non-condensing)

Mean Time Between Failure (MTBF) 200,000 hours (22 years) at the operating temperature of 25°C (77°F)




Regulatory Compliance RG-AP820-L(V3)Security regulations

IEC 62368-1

EN 62368-1

EMC regulations

EN 55032

EN 55035

EN IEC 61000-3-2

EN 61000-3-3

EN 301 489-1

EN 301 489-3

EN 301 489-17

Radio frequency regulations

EN 300 328

EN 301 893

EN 300 440

EN IEC 62311

FCC Part 15



*For more country-specific regulatory information and approvals, contact your local sales agency.



Software SpecificationsApplicabl e Software Version RG-AP820-L(V3)Applicabl e software version RGOS11.9(6)W1B4 or higher



WLAN RG-AP820-L(V3)Recommend ed maximum number of active devices per AP 120Maximum number of associated clients

256

 Note

The number of associated clients varies according to the environment.

Maximum number of BSSIDs 32 (up to 16 BSSIDs per radio)STA management

SSID hiding

Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.

Remote intelligent perception technology (RIPT)

Intelligent client identification technology

Intelligent load balancing based on the STA quantity or traffic

STA limiting

SSID-based STA limiting

Radio-based STA limiting

Bandwidth limiting STA/SSID/AP-based rate limitingWireless roaming Layer 2 and Layer 3 roamingBridge Vlan SupportedWireless Distribution System (WDS) Supported



SecurityRG-AP820-L(V3)Authentic ation and encryption

Remote Authentication Dial-In User Service (RADIUS)

PPSK, UPSK (used with AC) , web, 802.1X, WPA, WPA2, and WPA3 authentication

SMS authentication (used with the RG-WS series wireless access controller)

MAB authentication (used with the RG-WS series wireless access controller)

WEP (64/128 bits), WPA-Personal, WPA-Enterprise,  WPA2/WPA3(AES),  WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE, WPA3-OWE transition mode

Data frame filtering Allowlist, static blocklist, and dynamic blocklistACL Dynamic ACL assignmentCPP SupportedNFPP Supported



Routing and Switching RG-AP820-L(V3)IP servi ce

Static IPv4 address

IPv4 DHCP Client

FTP ALG and DNS ALG

Multicast Multicast-to-unicast conversionIPv6 basics

IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping

IPv6 DHCP Client

IP routing IPv4/IPv6 static routingVPN

PPPoE Client

IPsec VPN

LLDP

LLDP

LLDP-MED

LLDP-PoE



Management RG-AP820-L(V3)Network management

Fault inspection and alarm

Information statistics and logging

SNMPv1/v2c/v3

NTP Server and NTP Client

Network management platform

Ruijie Cloud

Web-based management (Eweb)

User access management Console, Telnet,  SSH,  SNMP and TFTP-based managementFat/Fit/Cloud mode switchover

When the AP works in Fit mode, it can be switched to Fat mode through an AC.

When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.

When the AP works in Cloud mode, it can be managed through Ruijie Cloud.
