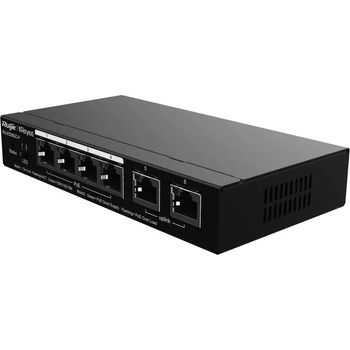

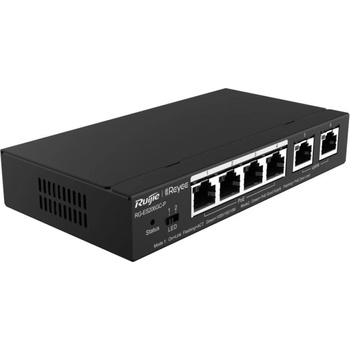

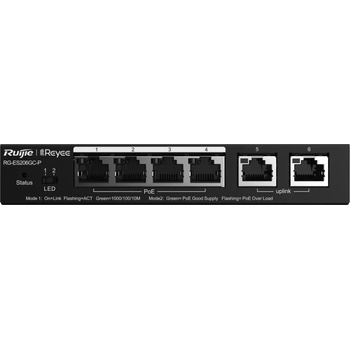

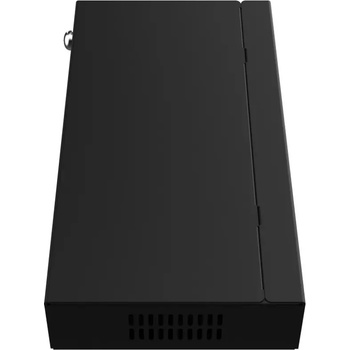

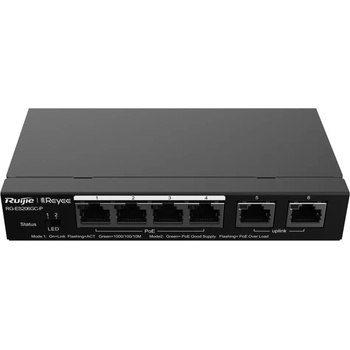

Ruijie RG-ES206GC-P

Ruijie RG-ES206GC-P

Highlight Features

• 6-Port gigabit cloud managed  switch with 4 PoE+ ports


• Cost-Effective Smart Cloud M anaged Switches


• IP Camera Recognition,  Unique Value for CCTV Network


• Automatic Loop Prevention En sures Service Continuity


• Lifetime management on Ruiji e Cloud at anytime anywhere

Specifications:



Basic



10/100/1000Base-Tports

6



1000Base-X SFP ports

No



PoE/PoE+ ports

4



Max. PoE budget

54W



Layer Type

Layer 2



Switching capacity

12 Gbps



Forwarding rate

8.93 Mpps



Packet Buffer

1 Mbit



MAC address table

4000



Maximum VLANSupport

16



Dimensions (W x D x H)

148 mm x 78 mmx 26 mm



MTBF

> 200,000



Software Features



10/100/1000M Auto/ Full/Half DuplexNegotiation

Yes



Flow Control

Yes



Storm Suppression

Yes



Management IP

10.44. 77.200



VLAN Range

1 - 4094



Port-based VLAN

Yes



STP / RSTP

No



QoS

No



ACL

No



DHCP Client

Yes



DHCP Snooping

Yes



Telnet

1 session



SSH

No



DNS Client

Yes



SNMP v1/v2/v3

No



Many-to-one PortMirroring

Yes



Downlink LoopProtection

Yes



Loop Disabled Port

Yes



Disconnection Duration

2s



Flow Control

Yes



Cable Testing

Yes



Web-basedManagement

Yes



HTTP

Yes



Cloud Management

Yes

Hardware Features

Reset Button

Rear



Cable Hot-swappable

Yes



Power Supply Slot

Power adapter



Power Consumption

≤60W



Power Supplies

54V DC adapter, 1.1A



EEE

No



Fan

No



Fan Adaptive SpeedAdjustment

No



Acoustic Noise

Noiseless



Operating Temperature

0°C to 40°C(32°F to 104°F)



Storage Temperature

-40°C to 70°C(-40°F to 158°F)



Operating Humidity

10% to 90% RH



Storage Humidity

5% to 95% RH



Port Surge

4 kV



Operating Altitude(meters)

-500 to 5000



Certificate

CE, RoHS
