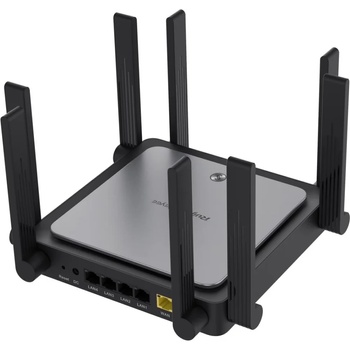

Ruijie RG-EW3200GX PRO

Ruijie RG-EW3200GX PRO



Time for Wi-Fi 6,

Time for RG-EW3200GX PRO

RG-EW3200GX PRO, the Red Dot Design Award 2021 winner.

All-round upgrade of Wi-Fi performance, supported by Tolly certificate. Get your home ready for the Next-Gen Gigabit Wi-Fi 6!





Supported by 4x4 Enterprise Level Chipset

Enjoy Better Stability under Heavy Load

Tolly proofs that EW3200GX PRO demonstrates more stable network performance at multiple connections.



Concurrently Support Multiple Devices Connection

MU-MIMO together with OFDMA technology significantly improve network performance for multiple terminals.



Specifications

Dimensions (W×D×H)

190 mm x 190 mm x 41 mm

Weight

0.8 kg (packages not included)

Wi-Fi Standards

Wi-Fi 6 (802.11ax)

MIMO

2.4 GHz, 4×4, MU-MIMO

5 GHz, 4×4, MU-MIMO

Max. Wi-Fi Speed

2.4 GHz: 800 Mbps

5 GHz: 2402 Mbps

Channel Width

2.4 GHz: Auto/20/40 MHz

5 GHz: Auto/20/40/80 MHz

Antennas

8

Antennas Type

External Omnidirectional

Antenna Gain

2.4 GHz: 5 dBi

5 GHz: 6 dBi

WAN Port

1×10/100/1000 Base-T Port

LAN Ports

4×10/100/1000 Base-T Ports

Recommended Users

60

Max. Users

192

Power Supply DC

12V/2.5A

Power Consumption

≤36W

Operation Frequency Bands

802.11b/g/n: 2.400 GHz to 2.483 GHz

802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz

802.11a/n/ac/ax: 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz

Transmit Power

Regular:

CE EIRP: ≤20 dBm (2.4 GHz)

≤27 dBm (5 GHz)

Operating Temperature

-10 °C to +45 °C

Operating Humidity

5% to 95% Noncondensing
