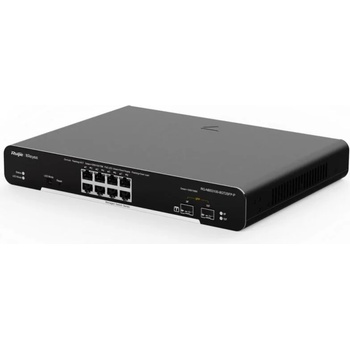

Ruijie RG-NBS3100-8GT2SFP

Ruijie RG-NBS3100-8GT2SFP



Key Specification

Por ts: 8 x 10/100/1000Base-T ports, 2 SFP uplink

Switching capacity: 20 Gbps

MAC address table: 8000

Fan: Fanless

Dimensions (W x D x H): 260 mm x 120 mm x 43.6 mm

MTBF: > 200,000

Layer type: Layer 2

Forwarding rate: 14.88 Mbps

Maximum VLAN: 4094

Port surge: 6 kV

Tech specs

10/100/1000Base-T ports

8

     SFP ports

2

     SFP+ ports

-

     PoE/PoE+ ports

-

     Max. PoE budget

-

     Layer Type

Layer 2

     Switching capacity

20 Gbps

     Forwarding rate

14.88 Mpps

     Packet Buffer

4.1 Mbit

     MAC address table

8,000

     Maximum VLAN Support

4094

     Dimensions (W x D x H)

260 mm x 120 mm x 43.6 mm

     Weight (With package)

1.2 kg

     MTBF

> 200,000



Layer 2 Features

Jumbo Frame

9216

     Flow Control

✔️

     STP (IEEE 802.1d)

✔️

     RSTP (IEEE 802.1w)

✔️

     MSTP (IEEE 802.1s)

-

     Port Fast

✔️

     BPDU Guard

✔️

     Errdisable Recovery

✔️

     Max. Aggregation Group

8

     Max. Member per Group

8

     Unknow Unicast Storm Suppression

✔️

     Multicast / Broadcast Storm Suppression

✔️

     Many-to-One Mirroring

✔️

     VLAN Range

1-4094

     Port-based VLAN

✔️

     MAC-based VLAN

✔️

     IP-based VLAN

✔️

     Voice VLAN

✔️

     RLDP

✔️

     LLDP / LLDP-MED

✔️

     Cable Testing

✔️

     IGMP Snooping v1/v2/v3

✔️



Software Features

Ping

✔️

     Traceroute

✔️

     ACL Entries

1200

     IP Standard ACL

✔️

     MAC-based Extended ACL

✔️

     IP-based Extended ACL

✔️

     Port-based Rate Limit (Ingress/Egress)

✔️

     SNMP v1/v2c/v3

-

     Web Management

✔️

     Management IP

10.44. 77.200

HTTP/HTTPS

✔️

     Cloud Management

✔️

     SON (Self-Organizing Network) with IP

✔️

     Camera Recognition

✔️

     Loop Prevention

✔️

     Loop Notification

✔️

     PoE Usage Alarm

-

     Protection Port

✔️

     IP Source Guard

✔️

     Anti-ARP Spoofing

✔️

     DHCP Snooping

✔️

     DHCP Client

✔️



Physical Features

Reset Button

Front

     Cable Hot-swappable

✔️

     Power Supply Slot

Power adpater

     Power Supplies

100 - 240V AC, 1A

     Power Consumption

≤ 8W

     EEE

✔️

     Fan

-

     Airflow

-

     Fan Adaptive Speed Adjustment

-

     Acoustic Noise

Noiseless

     Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Operating Humidity

10% to 90% RH

Storage Humidity

5% to 95% RH

Port Surge

6 kV

Operating Altitude (meters)

-500 to 5000

Certificate

CE, RoHS
