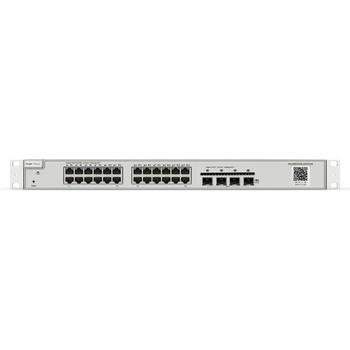

Ruijie RG-NBS3200-24GT4XS
Highlight Features
- 24-Port gigabit Layer 2 managed non-PoE switch, 4 SFP+ uplink
- Enterprise-class Quality Ensures High Performance
- IP Camera Recognition, Unique Value for CCTV Network
- Multiple Security Policies Protect Your Network
- Lifetime management on Ruijie Cloud at anytime anywhere
Specificati ons:
10/100/1000Base-T ports
24
SFP ports
No
SFP+ ports
4
PoE/PoE+ ports
No
Layer Type
Layer 2
Switching capacity
128 Gbps
Forwarding rate
95.24 Mpps
Packet Buffer
12 Mbit
MAC address table
16,000
Maximum VLAN Support
4094
Dimensions (W x D x H)
440 mmx 207.5 mm x 43.6 mm
MTBF
> 200,000
Layer 2 Features
Jumbo Frame
9216
Flow Control
Yes
STP (IEEE 802.1d)
Yes
RSTP (IEEE 802.1w)
Yes
MSTP (IEEE 802.1s)
No
Port Fast
Yes
BPDU Guard
Yes
Errdisable Recovery
Yes
Max. Aggregation Group
16
Max. Member per Group
8
Unknow Unicast Storm Suppression
Yes
Multicast / Broadcast Storm Suppression
Yes
Many-to-One Mirroring
Yes
VLAN Range
1-4094
Port-based VLAN
Yes
MAC-based VLAN
Yes
IP-based VLAN
Yes
Voice VLAN
Yes
RLDPLLDP / LLDP-MED
Yes
Cable Testing
Yes
IGMP Snooping v1/v2/v3
Yes
Softwar e Features
Ping
Yes
Traceroute
Yes
ACL Entries
1900
IP Standard ACL
Yes
MAC-based Extended ACL
Yes
IP-based Extended ACL
Yes
Port-based Rate Limit (Ingress/Egress)
Yes
SNMP v1/v2c/v3
No
Web Management
Yes
Management IP
10.44. 77.200
HTTP/HTTPS
Yes
Cloud Management
Yes
SON (Self-Organizing Network) with IP
Yes
Camera Recognition
Yes
Loop Prevention
Yes
Loop Notification
Yes
PoE Usage Alarm
No
Protection Port
Yes
IP Source Guard
Yes
Anti-ARP Spoofing
Yes
DHCP Snooping
Yes
DHCP Client
Yes
Physical Features
Reset Button
Front
Cable Hot-swappable
Yes
Power Supply Slot
Single, fixed power supply
Power Supplies
100 - 240V AC, 1.5A
Power Consumption
≤ 28W
EEE
Yes
Fan
1
Airflow
Left-to-Rear
Fan Adaptive Speed Adjustment
Yes
Acoustic Noise
< 45dB
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F
Operating Humidity
10% to 90% RH
Storage Humidity
5% to 95% RH
Port Surge
6 kV
Operating Altitude (meters)
-500 to 5000
Certificate
CE, RoHS
