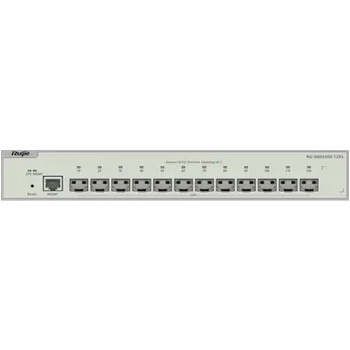

Ruijie RG-NBS5500-12XS

RG-NBS5500-12XS, 12-Port Full 10G SFP+ Layer 3 Managed Switch



Highlight Features

• 12-Port Full 10G SFP+ Layer 3 Managed Switch
• Lightning-fast 10G Ports, Unleashing the Full Performance of Wi-Fi 7 APs
• Easy Configuration with the MGMT Port
• Rich Layer 3 Features: VCS, Static Routing, RIP, OSPF, DHCP Server, etc.
• Multiple Security Policies Protect Your Network
• Easy cloud management anytime and anywhere





Lightning-fast 10G Ports,
Unleashing the Full Performance of Wi-Fi 7 APs





Specifications:



Hardware Specifications

Numbe r of 10 Gbps Optical Ports (SFP+) 12Number of Fans 2Power Supply Options Single fixed power supplyNumber of Management Ports 1 x 10/100/1000BASE-T MGMT portForwarding Rate 178.56 MppsSwitching Capacity 240 GbpsMAC Address Table Size 32000ARP Table Size 2000IPv4 Hardware Routing Table Size (Host Routing) 12000Static IPv4 Routing Table Size 500IPv6 Hardware Routing Table Size (Required to Learn All Routes Under the Full Mesh Testing Model) 500Static IPv6 Routing Table Size 500Number of ACEs

Inbound: 1900

Outbound: 0

Number of VCS Members 2Dimensions (W x D x H) 300 mm x 232 mm x 44 mm (11.81 in. x 9.13 in. x 1.73 in. )Net Weight 2.26 kg (4.98 lbs)Gross Weight 3.04 kg (6.70 lbs)Power Supply Rated voltage range: 100–240 V AC
Maximum voltage range: 90–264 V AC
Frequency: 50/60 Hz
Rated current: 2 APower Consumption 44 WOutput Power 12 V/5.83 A, Power=70 WAirflow Left to rightOperating Temperature 0°C to 50°C (32°F to 122°F)Storage Temperature –40°C to +70°C (–40°F to +158°F)Operating Humidity 10% to 90% RH (non-condensing)Storage Humidity 5% to 95% RH (non-condensing)Port Surge Protection Common mode: 6 kVPower Supply Surge Protection Common mode: 6 kV
Differential mode: 6 kVCertification CE; FCC; IC; CTUVUS



Software Specifications



Software Specifications RG-NBS5500-12XS Ethernet Switching Jumbo Frame 9216 Bytes (Per-port MTU)VLAN 802.1Q VLANPort-based VLANVoice VLANSTP STP (IEEE 802.1D)RSTP (IEEE 802.1W)LLDP LLDPLLDP-MEDIP Service ARP ARPDHCP DHCP RelayDHCP SnoopingDHCP ServerDHCP ClientIP Routing Static Routing Static RoutingRIP RIPRIPngOSPF OSPFv2OSPFv3Multicast IGMP IGMP SnoopingIGMPv1 SnoopingIGMPv2 SnoopingIGMPv3 Snooping (Basic)MVR Mode (MVR receiver ports can only be access ports. )IGMP FilteringIGMP Fast LeavePIM PIM-SMACL and QoS ACL IP Standard ACLMAC Extended ACLIP Extended ACLIPv6 ACLQoS Port-Level Rate Limiting (Ingress/Egress)Security 802.1X IEEE 802.1X AuthenticationPort-based AuthenticationMAC-based AuthenticationGlobal IEEE 802.1X Authentication ControlForce AuthorizedSecurity 802.1X Force UnauthorizedPort-based Single-Host ModePEAP Authentication for Windows 7/8/10/11 ClientsPEAP Authentication for macOS ClientsPEAP Authentication for Linux OS ClientsManagement via Web Interface Web AuthenticationHTTPHTTPSIP-MAC-Po rt Binding IP-MAC-Port BindingARP Anti-Spoofing ARP Anti-SpoofingIP Source Guard IP Source GuardCPU Protection Policy (CPP) Hardware CPPReliability RLDP RLDPSmart Temperature Control Fan Speed Auto-AdjustmentDevice virtualization Virtual Cluster Switching (VCS) Support Inter-Chassis Hot StandbyConfiguring 10G Ports for VCLSDual-Active Detection (DAD)Cross-device Link Aggregation for Load BalancingNMS and maintenance SPAN SPANNTP NTP ClientSNMP SNMP v1SNMP v2cNMS and maintenance SNMP SNMP v3MQTT MQTTSelf-Organizing Network Self-Organizing NetworkNetwork Management Management via Ruijie CloudRuijie Cloud View Device Details on Ruijie Cloud
