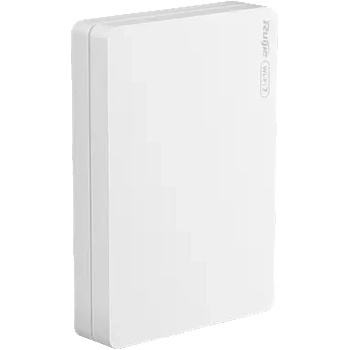

Ruijie RG-RAP72-Wall

Ruijie RG-RAP72-Wall

Highlight Features

• Wi-Fi 7 revolution, providing data rates of up to 3600 Mbps
• 2.5 Gbps uplink port for ultra-high-speed indoor access
• PoE output for IP phones and other IoT devices
• Compact design with a thickness of 24 mm
• Anti-theft lock for device protection

Key Specification

Wi-Fi Standards

IEEE 802.11a/b/g/n/ac/ax/be

5 GHz Spatial Streams

2 spatial streams, 2x2 MU-MIMO

2.4 GHz Spatial Streams

2 spatial streams, 2x2 MU-MIMO

Max. Throughput

3570 Mbps

Dimensions (excluding mounting kits)

124 mm x 86 mm x 24 mm (4.88 in. x 3.39 in. x 0.94 in. )

Net Weight

≤ 0.27 kg (0.60 lbs. )

Number of 10/100/1000/2500BASE-T Ports

1

Number of 10/100/1000BASE-T Ports

4

Power Supply

802.3af/at PoE

Power Consumption

< 15 W

Operating Temperature

0°C to +40°C (32°F to +104°F)

IP Rating

IP41

Certification

CE, RoHS, FCC, ISED, cTUVus
