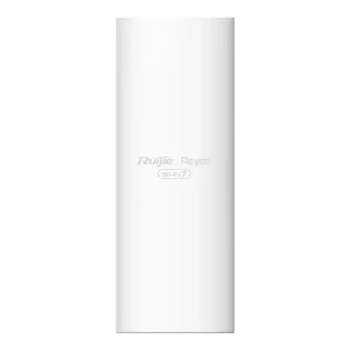

Ruijie RG-RAP72Pro-OD

Ruijie RG-RAP72Pro-OD

Highlight Features

• AI-Powered Wi-Fi 7 Versatile Outdoor/Indoor Mesh AP
• Wall or Pole Mounting to Fit in Any Location
• IP65 Weatherproof Rating, Delivering Consistent Protection and Signal Stability
• Build-in Antennas for Coverage Where Needed
• Tailored for Retail Businesses with Reyee Mesh, Standalone Portal, and AI Roaming Features

De cor in Cutting-Edge,
Elegant Wi-Fi 7

Key Specification

5 GHz Wi-Fi Protocols

Wi-Fi 4: IEEE 802.11a/n
Wi-Fi 5: IEEE 802.11ac Wave2
Wi-Fi 6: IEEE 802.11ax
Wi-Fi 7: IEEE 802.11be

2.4 GHz Wi-Fi Protocols

Wi-Fi 4: IEEE 802.11b/g/n
Wi-Fi 6: IEEE 802.11ax
Wi-Fi 7: IEEE 802.11be

5 GHz Spatial Streams

3 spatial streams, 3x3 MIMO

2.4 GHz Spatial Streams

2 spatial streams, 2x2 MIMO

Combined Peak Data Rate

5011 Mbps

Dimensions (excluding mounting kits)

90 mm x 46 mm x 239 mm (3.54 in. x 1.81 in. x 9.41 in. )

Weight (excluding mounting kits)

≤ 0.7 kg (1.54 lbs. )

Number of 10/100/1000/2.5GBASE-T Ports

1

802.3af (PoE)

Yes (2.4 GHz: 1T1R; 5 GHz: 2T2R)

802.3at (PoE+)

Yes

802.3bt (PoE++)

N/A

48 V Passive PoE

N/A

Power Consumption

< 21 W

Operating Temperature

–30°C to +65°C (–22°F to +149°F)

IP Rating

IP65

Recommended Number of Associated Clients

BW160 11be/ax: 16 (2.4 GHz) + 94 (5 GHz) = 110
BW80 11ax: 16 (2.4 GHz) + 64 (5 GHz) = 80
11ac: 8 (2.4 GHz) + 32 (5 GHz) = 40

Certification

CE, RoHS, FCC, ISED, cTUVus
