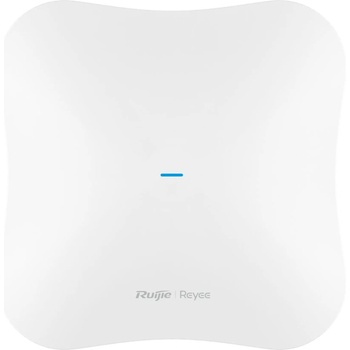

Ruijie RG-RAP73HD

Ruijie RG-RAP73HD

Highlight Features

• Tri-radio performance, 6G/320 MHz brings extre-high wireless rate
• Better Streaming experience with Wi-Fi 7 exclusive feature MLO
• Increase the high-density access capacity up to 1500
• 4K-QAM, deliever data packs better for higher speeds
• Capable of Enterprise Switch to build PRO Office Network

Specifications:

Category DetailsWi-Fi Protocols  6 GHz Wi-Fi 6: IEEE 802.11ax, Wi-Fi 7: IEEE 802.11be5 GHz Wi-Fi 4: IEEE 802.11a/n, Wi-Fi 5: IEEE 802.11ac Wave2, Wi-Fi 6: IEEE 802.11ax, Wi-Fi 7: IEEE 802.11be2.4 GHz Wi-Fi 4: IEEE 802.11b/g/n, Wi-Fi 6: IEEE 802.11ax, Wi-Fi 7: IEEE 802.11beOperating Frequency Bands (country-specific restrictions apply)  6 GHz 5.925 GHz to 7.125 GHz5 GHz 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz2.4 GHz 2.400 GHz to 2.4835 GHzSpatial Streams  6 GHz 4 spatial streams, 4x4 MIMO5 GHz 4 spatial streams, 4x4 MIMO2.4 GHz 4 spatial streams, 4x4 MIMOAntenna  Omni-directional Yes6 GHz Antenna Gain 5.0 dBi5 GHz Antenna Gain 4.0 dBi2.4 GHz Antenna Gain 3.0 dBiChannel Width  6 GHz Auto/20/40/80/160/320 MHz5 GHz Auto/20/40/80/160 MHz2.4 GHz Auto/20/40 MHzData Rate  Max Throughput 18668 Mbps6 GHz 11528 Mbps5 GHz 5764 Mbps2.4 GHz 1376 MbpsCategory DetailsMax. Transmit Power  6 GHz ≤200 mW (23 dBm)5 GHz ≤316 mW (25 dBm)2.4 GHz ≤316 mW (25 dBm)Wi-Fi Coverage Optimal Coverage: 70Modulation  OFDM BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 MbpsDSSS DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, CCK @ 5.5/11 MbpsMIMO-OFDM BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAMOFDMA SupportedReceiver Sensitivity  11b -91 dBm (1 Mbps), -88 dBm (5.5 Mbps), -85 dBm (11 Mbps)11a/g -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps)11n -83 dBm (MCS0), -65 dBm (MCS7), -83 dBm (MCS8), -65 dBm (MCS15)11ac (20MHz) -83 dBm (MCS0), -57 dBm (MCS9)11ac (40MHz) -79 dBm (MCS0), -57 dBm (MCS9)11ac (80MHz) -76 dBm (MCS0), -51 dBm (MCS9)11ac (160MHz) -76 dBm (MCS0), -50 dBm (MCS9)11ax (20MHz) -85 dBm (MCS0), -58 dBm (MCS11)11ax (40MHz) -82 dBm (MCS0), -54 dBm (MCS11)11ax (80MHz) -79 dBm (MCS0), -52 dBm (MCS11)11ax (160MHz) -76 dBm (MCS0), -49 dBm (MCS11)11be (20MHz) -85 dBm (MCS0), -52 dBm (MCS13)11be (40MHz) -82 dBm (MCS0), -49 dBm (MCS13)11be (80MHz) -82 dBm (MCS0), -46 dBm (MCS13)11be (160MHz) -79 dBm (MCS0), -44 dBm (MCS13)11be (320MHz) -76 dBm (MCS0), -41 dBm (MCS13)Dimensions (W x D x H) 258 mm x 258 mm x 59.5 mm (10.16 in. x 10.16 in. x 2.34 in. )Weight (excluding mounting kits) ≤ 2.0 kg (4.41 lbs. )Service Ports  Number of 10/100/1000BASE-T Ports 1Number of 100/1000/2.5G/5G/10GBASE-T Ethernet Ports 1 (supports 802.3bt PoE)Number of 10 Gbps Optical Ports (SFP+) 1Category DetailsPower Supply  DC (Local Power) Yes (48V/1.48A)DC Port Dimensions Outer Diameter: 5.5 mm, Inner Diameter: 2.1 mm, Length: 10 mm802.3af No802.3at Yes (2T2R)802.3bt Yes48V Passive PoE Yes (60W)PoE Out Max. PoE Wattage by PSE NoPower Consumption < 60WPower Adapter YesButtons 1 × Factory resetLEDs 1 × System LED indicator (blue)Environment  Operating Temperature 0°C to +40°C (32°F to +104°F)Storage Temperature –40°C to +70°C (–40°F to +158°F)Operating Humidity 5% to 95% (non-condensing)Storage Humidity 5% to 95% (non-condensing)Mounting  Ceiling-mount YesWall-mount YesPole-mount No
