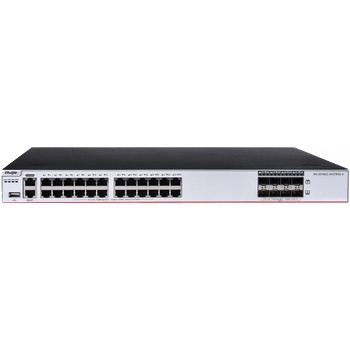

Ruijie RG-S5760C-24GT8XS-X

Ruijie RG-S5760C-24GT8XS-X



Hardware Specifications

Interface Specifications

Fixed port

24 x 10/100/1000 Mbps electrical ports with auto-negotiation, 8 x 1GE/10GE SFP+ ports, 2 x power supply module slots

Fan module

Two built-in fan modules

Fan speed regulating and fault alarms

Power module

Two power modules

The switch can be powered on by either one or dual power modules. If both power modules are used, the switch works in the power redundancy mode.

Management port

One MGMT port, one console port, and one USB port, compliance with the USB2.0 standard

Expansion slot

Two expansion slots are reserved for expansion modules and supervisor modules. One expansion slot is reserved on the RG-S5760C-48GT4XS-HP-X and RG-S5760C-48SFP4XS-X.

System Specifications

Packet forwarding rate

426Mpps/660Mpps

Switching capacity

7.92Tbps

Number of MAC addresses

128,000

ARP table size

24,000

Number of IPv4 unicast routes

24,000

Number of IPv4 multicast routes

4,000

mmu-enhance: 3,000

Number of IPv6 unicast routes

14,000

Number of IPv6 multicast routes

2,000

mmu-enhance: 1,500

Number of ACEs

In: 7,000

Out:1,500

Number of IGMP groups

4,000

Number of MLD groups

1,000

Number of VSU members

4

Dimensions and Weight

Dimensions (W x D x H)

440 mm x 340 mm x 44 mm

Weight

4.4 kg

CPU and Storage

CPU

1.2 GHz dual-core CPU

Storage

Flash memory: 4 GB

SDRAM: 1 GB

Data packet buffer

1.2MB

Power and Consumption

Maximum power consumption

< 60 W (excluding expansion modules)

< 85 W (including expansion modules)

Maximum output power

RG-PA70IB: 70 W

RG-PA150I-F: 150 W

RG-PA150IB-F: 100 V to 240 V, 150 W

RG-PD150IB-F: 48 V DC to 60 V DC, 150 W

Rated input voltage

AC input

Rated voltage range: 100 V to 240 V

Frequency: 50 Hz/60 Hz

HVDC input:

Rated voltage range: 240 V

LVDC input:

Rated voltage range: 48 V DC to 60 V DC

Maximum input voltage

AC input

Maximum voltage range: 90 V to 264 V

HVDC input:

Maximum voltage range: 192 V to 288 V

LVDC input:

Maximum voltage range: 36 V DC to 75 V DC
