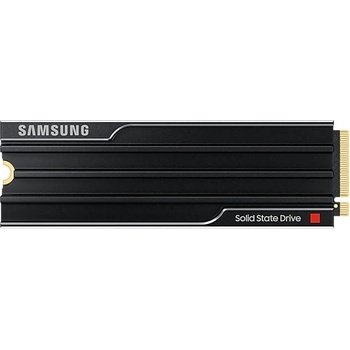

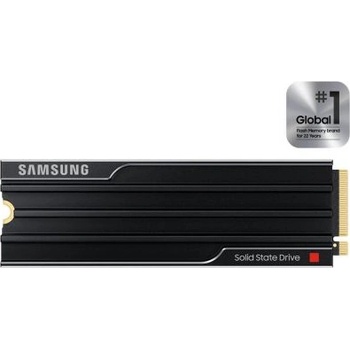

Samsung 9100 PRO 8TB (MZ-VAP8T0CW)

Samsung 9100 Pro

Performance ready for a new era

Blazing speed. Massive capacity. Built for AI and beyond. With up to twice the speed of the 990 PRO SSD and up to an 8TB storage option, 2 the Samsung 9100 PRO with Heatsink SSD supercharges AI workloads, 4K video rendering, and gaming.

Breakthrough PCIe 5.0 performance

PCIe 5.0 Performance

Supercharge your workflow and gaming with lightning-fast PCIe 5.0, boasting sequential read/write speeds up to 14,800/13,400 MB/s. Effortlessly tackle the heaviest files, from massive video projects to hi-res image editing. Experience the jaw-dropping speed of Gen5—twice as fast as the 990 PRO SSD—making it the undisputed champion of SSDs on the market.

Every task, turbocharged

Rand om speed

Speed past productivity limits. With random read/write speeds up to 2,200K/2,600K IOPS, enjoy fast game loads, seamless AI apps, and efficient multitasking. Virtually no lag, no limits - just nonstop performance.

Think fast, create faster.

Boost AI applications

With random read/write speeds of up to 2,200K/2,600K IOPS, the 9100 PRO with Heatsink SSD fuels seamless AI content creation, swift loads, and smooth gameplay. Work, play, and create at lightning speed.

Designed for compatibility, built for speed.

Compatibility

No barriers, just action. Team up with the 9100 PRO with Heatsink SSD on your compatible PC, laptop, or PlayStation 5 and dive into top-notch performance with the newest PCIe 5.0 interfaces. Crush the competition and come out on top in any arena.

Stay cool, run fast.

Innovative Power & Thermal Control

Push limits, not temperatures. A 5nm controller boosts power efficiency up to 49% over the 990 PRO SSD, while advanced thermal control keeps performance smooth and reliable.

Specifications

General Information

Application

Client PCs, Game Consoles

Capacity

8,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor

M. 2 (2280)

Interface

PCIe® 5.0 x4, NVMe 2.0

Dimension (WxHxD)

3.2 x 0.9 x 0.44 in

Weight

0.08 lb

Storage Memory

Samsung V-NAND TLC

Controller

Samsung in-house Controller

Cache Memory

Samsung 8GB Low Power DDR4X SDRAM

Special Feature

TRIM Support
Supported
S. M. A. R. T Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support
Not supported
Device Sleep Mode Support
Yes

Performance

Sequential Read
Up to 14,800 MB/s * Performance may vary based on system hardware & configuration
Sequential Write
Up to 13,400 MB/s * Performance may vary based on system hardware & configuration
Random Read
Up to 2,200, 000 IOPS * Performance may vary based on system hardware & configuration
Random Write
Up to 2,600, 000 IOPS * Performance may vary based on system hardware & configuration
Environment
Average Power Consumption (system level)
Average: Read 10.5 W / Write 8.8 W* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Typical 9.3 mW * Actual power consumption may vary depending on system hardware & configuration
Power Consumption (Device Sleep)
Typical 8.6 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage
3.3 V ± 5 % Allowable voltage
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Operating Temperature
0 - 70 ℃ Operating Temperature
Shock
1,500 G & 0.5 ms (Half sine)
