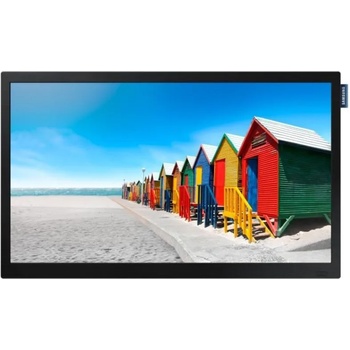

Samsung DB22D

Optimised performance, cost-efficiency and easy installation

DBD Series digital signage offers you a winning combination of cost-efficiency, ease of installation and optimal performance that enables you to be more productive. The embedded, all-in-one 2nd Generation Samsung Smart Signage Platform (SSSP) boosts power and capacity while providing user-friendly content management. Without the need for external media players or PCs, the deployment process is streamlined, saving you time and resources. You can conveniently install this wireless, lightweight digital signage with narrow bezels for an impressive, modern look and clear message delivery 16/7 on bright, 350-nit screens.

Simplify content delivery with a hassle-free all-in-one solution

Improve productivity and reduce operating costs by installing and configuring the signage solution with greater ease. The embedded, all-in-one 2nd Generation SSSP eliminates the need for a separate PC or media player to streamline digital signage operation and improve TCO. To boost efficiency, content deployment and sharing is simplified with a PC-less network connection that lets you plug in a USB and link multiple displays over a daisy chain configuration

Accelerate business performance with advanced 2nd Generation SSSP

DBD Series digital signage is powered by a significantly upgraded embedded 2nd Generation SSSP. The new quad-core SoC processor substantially improves performance with a remarkably faster processing speed for rich, seamless messaging. The increased power supports interactive digital signage capability that is available for all sizes through an optional Touch Overlay. This innovative feature amplifies your messaging with engaging interactivity, without the need for an additional PC. Now, schools, corporations and other businesses can offer interactive signage with less expense and difficulty. In addition, the 2nd Generation SSSP supports a picture-in-picture (PIP) size over 50 percent of the digital signage area for operational excellence, compared to less than 50 percent in dual-core digital signage.

Manage digital signage wirelessly virtually anywhere, anytime on a mobile device

With a convenient Wi-Fi dongle option, users can control and wirelessly distribute content to the digital signage solution using mobile devices for convenient content management. The ability to send and schedule content from a mobile device, instead of locating a PC that is connected to the digital signage or finding suitable cable connections simplifies display management.

Specification

Display

Diagonal Size:  21.5"

Panel Type:  60 Hz E-LED BLU

Resolution:  1920 x 1080

Pixel Pitch (HxV):  0.2482 (H) x 0.2482 (V)

Active Display Size (HxV):  476.64 (H) x 268.11 (V)

Brightness (Typical):  250 Cd/m2

Contrast Ratio:  1000:1

Viewing Angle (Horizontal/Vertical):  178°:170° (CR≥5), 170°:160° (CR≥10)

Response Time:  5 ms

Display Colour:  16.7 M

Colour Gamut:  72%

H-Scanning Frequency:  30 ~ 81 kHZ

Maximum Pixel Frequency:  148.5 MHz

V-Scanning Frequency:  48 ~ 75 HZ

Peak Luminance Ratio:  90%

Dynamic Contrast Ratio:  50000:1

Connectivity

RGB In:  Analog D-SUB

Audio In:  Stereo mini Jack

Video In:  HDMI1

Power

Power Supply:  AC 100 - 240 V ~ (+/- 10 %), 50 / 60 Hz

Power Consumption (Off Mode):  less than 0.5 W

Power Consumption (On Mode):  Max:40, Typical:30, BTU(Max):136.4

Power Consumption (Sleep Mode):  less than 0.5 W

Power Consumption (IEC 62087 Edition 2):  31.0 W

Power Consumption (Stand-by):  0.30W

Yearly Power Consumption (EU standard, kWh):  45.0

Dimension

Set Dimension (WxHxD):  507.5 x 311.2 x 57.8 mm

Package Dimension (WxHxD):  570 x 376 x 128 mm

Weight

Set Weight with Stand:  3.3 kg

Package Weight:  4.5 kg

Operation Conditions

Temperature:  0 ~ 40°C

Humidity:

10 ~ 80°C

Mechanical Specification

VESA Mount:  100ⅹ100 mm

Bezel Width:  14.85 mm

Media Player Option Type:  embedded

General Feature

Special:  Temperature Sensor, Portrait Installation Support, Image Rotation, Button Lock, Clock Battery(80hrs Clock Keeping), Built in Speaker, WiFi Module Embedded

Speaker:  Built in Speaker(1W x 2)
