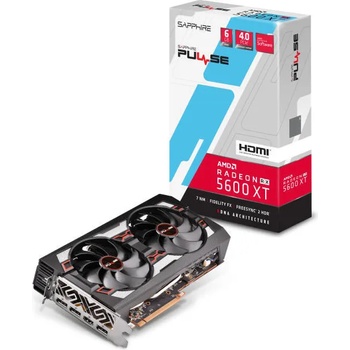

SAPPHIRE Radeon RX 5600 XT Graphics 6GB GDDR6 192bit (11296-01-20G)

SAPPHIRE PULSE RX 5600 XT

The SAPPHIRE PULSE RX 5600 XT offers incredible performance at the optimal budget for every gamer. With lightning fast GDDR6 memory and redefined display and media engines, the PULSE RX 5600 XT is the ideal graphics card for 1080p gamers. It is powered by AMD’s extreme RDNA architecture, alongside our innovative Dual-X Cooling Technology which keeps the GPU, Memory and VRM components icy cool at low noise levels. The all-aluminum backplate preserves the rigidity of the GPU and guarantees nothing bends, dust stays out and adds another level of passive cooling to dissipate heat. Pivotal SAPPHIRE features like the Quick Connect Fan, Dual Bios Support and Dual Ball Bearing Fans keep your GPU running smooth and stable. Take your gaming to the next level with the SAPPHIRE PULSE RX 5600 XT as the beating heart of your PC!

Specifications

GPU:

Radeon RX 5600 Graphics

2nd Gen 7nm GPU

RDNA Architecture

Engine Clock

Boost Clock: Up to 1750 MHz

Game Clock: Up to 1615 MHz

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors:  2304

Memory Size/Bus:  6GB/192 bit GDDR6

Memory Clock:  14 Gbps Effective

Displays:  Maximum 4 Displays

Resolution

HDMI: 4096×2160@60Hz

DisplayPort1.4: 5120×2880@60Hz

Interface:  PCI-Express 4.0

Output

1x HDMI

3x DisplayPort

BIOS Support:  Dual UEFI

API:

Vulkan®

OpenGL® 4.6

OpenCL 2.0

DirectX® 12

Shader Model 6.4

Game Index:  Extreme 1080P, 1440P Entry

Sapphire Features:

Power Design

Free Flow

TriXX Supported

TriXX Boost

Intelligent Fan Control

Precision Fan Control

Robust VRM Cooling

Robust Memory Cooling

Dual-X Cooling Technology

Tough Metal Backplate

PCB Layers

Two-Ball Bearing

Fan Quick Connect

Fuse Protection

Dual BIOS

AMD Features:

RDNA Architecture

2nd Gen 7nm GPU

GDDR6 Memory

Power Efficiency

PCI Express 4.0 Support

Video Streaming up to 8K

Display Port 1.4 (HBR3) / DSC

Radeon Software

Radeon Boost

Radeon Image Sharpening

Radeon Anti-Lag

AMD FidelityFx

Async Compute

Radeon Rays Audio + True Audio Next

Radeon FreeSync 2 HDR

Cooling

Dual-X Cooling

Dual Fan

Two-Ball Bearing

Form Factor

2.3 slot, ATX

Dimension: 254 x 135 x 46.5(mm)

Power Consumption:  160W

OS:  Linux®, Windows®  10, Windows®  7 64bit operating system required

System Requirement

Recommended 500 Watt Power Supply (Minimum 450 Watt Power Supply).

1 x 8-pin Power Connector.

PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 4GB of system memory. 8GB recommended.
