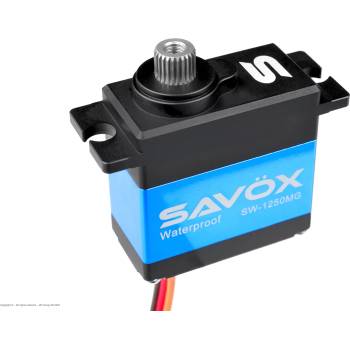

SAVOX Серво савокс Savox SW-1250MG WATERPROOF HiVolt Digital servo (8kg-0, 10s/60°) SAVOX-SW1250MG (SAVOX-SW1250MG)

Серво савокс Savox SW-1250MG WATERPROOF HiVolt Digital servo (8kg-0,10s/60°) SAVOX-SW1250MG

The SW-1250MG is a premium waterproof, ultra torque, digital mini servo that is the ultimate replacement for Traxxas 1/16 scale applications.

Features:

• Full aluminum waterproof case.
• Strong metal gear train for increased durability.
• Ultra torque and speed for mini applications
• Designed for Traxxas 1/16 vehicles.
• NEW: SOFT START

Specifications:

• Torque @6v - 5.0kg
• Torque @7.4v - 8.0kg
• Speed @6v - 0.12 sec/60 deg
• Speed @7.4v - 0.10 sec/60 deg
• Dimensions L x W x H (mm): 29.5 x 14.0 x 32.5
• Weight: 36.0g

Technical Details

• Operating Temperature: (-10° - 50°C)
• Running Current (no load): 80mA @4.8V, 100mA @6.0V
• Stall Current (at locked): 1500mA @4.8V, 1900mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 1BB
• Operating Travel: 100° (1000 → 2000 second)
• Neutral Position: 1500 second
• Pulse Width Range: 800 → 2200 second
• Maximum Travel: Appx 130° (800 → 2200 second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
