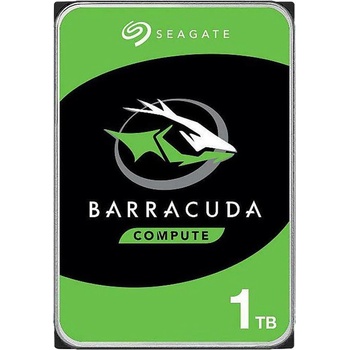

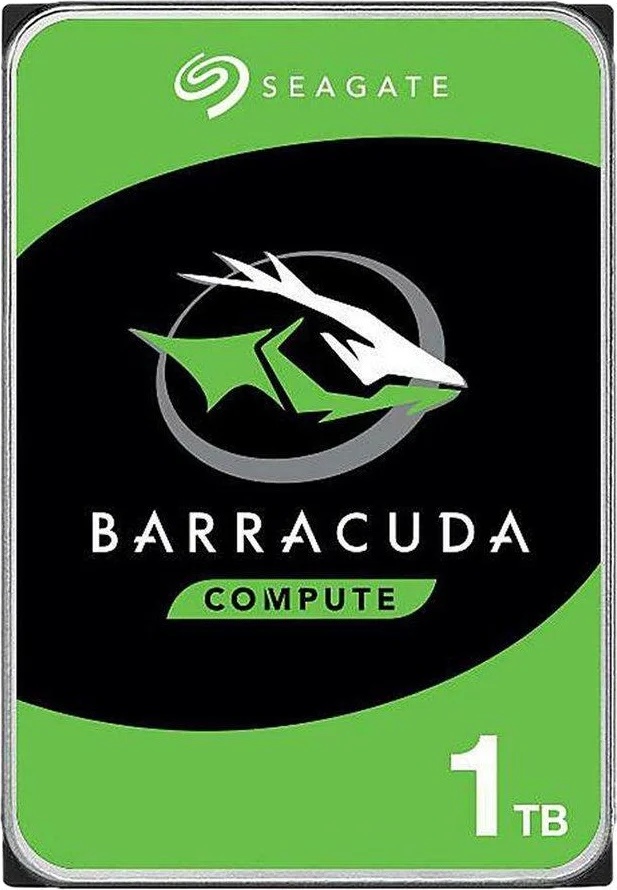

Seagate Barracuda 1TB SATA3 7200rpm (ST1000DM014)

SEAGATE Desktop Barracuda 7200 1TB HDD 7200rpm SATA 3.5inchSEAGATE Desktop Barracuda 7200 1TB HDD 7200rpm SATA 3.5inch:Manufacturer : SEAGATEManufacturer Part No : ST1000DM014Marketing DescriptionThe Serial ATA (SATA) interface provides several advantages over the traditional (parallel) ATA interface. The primary advantages include: easy installation and configuration with true Plug-and-Play connectivity. It is not necessary to set any jumpers or other configuration options. Thinner and more flexible cabling for improved enclosure airflow and ease of installation. Scalability to higher performance levels.
In addition, SATA makes the transition from parallel ATA easy by providing legacy software support. SATA was designed to allow users to install a SATA host adapter and SATA disk drive in the current system and expect all of the existing applications to work as normal.
The SATA interface connects each disk drive in a point-to-point configuration with the SATA host adapter. There is no master/slave relationship with SATA devices like there is with parallel ATA. If two drives are attached on one SATA host adapter, the host operating system views the two devices as if they were both "masters" on two separate ports. This essentially means both drives behave as if they are Device 0 (master) devices.
The SATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward compatibility with existing host systems and software. The Command and Control Block registers, PIO and DMA data transfers, resets, and interrupts are all emulated. Product Features

• Compliant with RoHS requirements in China and Europe
• High instantaneous (burst) data-transfer rates (up to 600 MB per second)
• Native Command Queuing with command ordering to increase performance in demanding applications
• Quiet operation
• State-of-the-art cache and on-the-fly error-correction algorithms
• Support for S. M. A. R. T. drive monitoring and reporting
• Supports latching SATA cables and connectors
• Worldwide Name (WWN) capability uniquely identifies the drive

GeneralDevice Type : Hard drive - internalCapacity : 1 TBForm Factor : 3.5"Interface : SATA 6Gb/sBuffer Size : 256 MBBytes per Sector : 4096Features : Native Command Queuing (NCQ), PIO mode 0-4 support, Multi-Word DMA mode 0-2 support, Ultra DMA Mode 0-6 support, Hot-Plug Support, Worldwide Name (WWN), shingled magnetic recording (SMR), S. M. A. R. T health information supportWidth : 101.6 mmDepth : 146.99 mmHeight : 20.2 mmWeight : 490 gPerformanceDrive Transfer Rate : 600 MBps (external)Average Latency : 6 msSpindle Speed : 7200 rpmReliabilityNon-Recoverable Errors : 1 per 10^14Expansion & ConnectivityInterfaces : 1 x SATA 6 Gb/s - 7 pin Serial ATACompatible Bay : 3.5"PowerPower Consumption : 3.9 Watt (idle)
5.1 Watt (read/write)
0.3 Watt (standby)
0.3 Watt (sleep)Software & System RequirementsSoftware Included : Seagate SeaToolsMiscellaneousCompliant Standards : China RoHS, EN 61000-4-2:95, EN 61000-4-3:96, EN 61000-4-4:95, EN 61000-4-5:95, EN 61000-4-6:97, EN 61000-4-11:94, ENV 50204:95, ASTM B845, EU RoHSEnvironmental ParametersMin Operating Temperature : 0 °CMax Operating Temperature : 60 °CMin Storage Temperature : -40 °CMax Storage Temperature : 70 °CHumidity Range Operating : 5 - 90% (non-condensing)Shock Tolerance (operating) : 80 g @ 2 msShock Tolerance (non-operating) : 350 g @ 2 msVibration Tolerance (operating) : 0.25 g @ 350-500 HzVibration Tolerance (non-operating) : 3 g @ 350-500 HzSound Emission : 28 dBTechnical data provided by third party. We assume no liability for errors within these data.
