Seasonic Arch Q503 ATX-650W

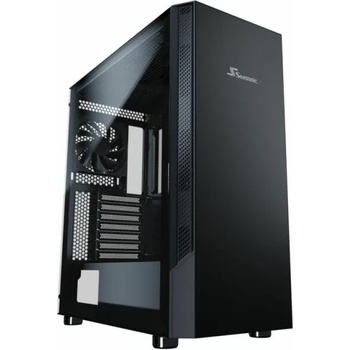

Seasonic ARCH Q5

Case Specifications

Form Factor: Mid Tower

Materials: Steel, Plastic

Side Panel Type: 4 mm Tempered Glass Side Panel

Compatibility and Clearances



Mainboard Support: Extended ATX, ATX, Micro ATX, ITX

Maximum Motherboard Size: 305 mm x 277 mm

Maximum PSU Length: 230 mm

Maximum CPU Cooler Height: 165 mm

Maximum GPU Length: 380 mm

Access and Control

Power: 1

Reset: 1

USB 3.0: 2

HD Audio IN: 1

HD Audio OUT: 1

USB 3.1 Gen 2 Type-C: 1

PCIe and Slots Drive Bays

PCIe Slots: 7

3.5" HDD Bays*     3 (* 3.5 HDD bays can be used for 2.5 SSD)

2.5" SSD Brackets: 3

Fan Capacity

120 mm

Front: 3

Top: 2

PSU Shroud: 2

Rear: 1

Dust Filter: Top / Bottom

140 mm

Front: 2

Top: 2

Radiator Capacity

Front: Up to 360 mm

Top: Up to 280 mm

Rear: Up to 120 mm

Parts and Accessories

Fans Included:

2 x 120mm Fans in Front

1 x 120mm Fan in Rear

Dimensions (D x W x H): 448 mm (D) x 215 mm (W) x 482 mm (H)

Seasonic CONNECT 80PLUS® Gold 650W

Technical Specifications

80PLUS®     Gold

Cybenetics Efficiency Level     TBA

Cybenetics Noise Level     TBA

Form Factor     Intel ATX 12 V

Dimensions     140 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information

Fan Size: 135 mm

Fan Control: Premium Hybrid Fan Control

Fan Bearing: Fluid Dynamic Bearing

Life Expectancy: 50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information

Modularity: Fully Modular

Cable type: Flat black cables

Electrical Features

Operating Temperature: 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

MTBF @ 25 °C, excl. fan: 50,000 hours

AC Input: Full Range

Protection: OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental

Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE

Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
