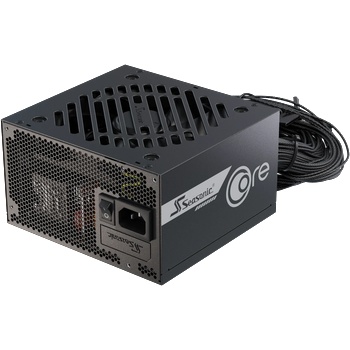

Seasonic Core BC 850W 80 PLUS Bronze

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4 Снимка 5
SEASONIC PSU CORE BC-850 BRONZ

Power: 850W
Manufacturer: SEASONIC
Model: CORE BC-850
Form Factor: ATX/EPS
AC Input: 100 V - 240 V;11 - 5.5 A;50 Hz - 60 Hz
DC Output: Rail: +3.3 V/ +5 V/ +12 V/ -12 V/ +5 Vsb;Maximum Power: 20 A - 100 W/ 20 A/ 54 A - 648 W/ 0.3 A - 3.6 W/ 2.5 A - 12.5 W
Connectors: 1 x MB (24/20 pins);2 x CPU (8/4 pins);1 x PCIe (8/6 pins);2 x PCIe (8/6 pins);1 x 12V-2x6;3 x SATA/ Molex
Fan Information: Fan Size: 120 mm;Fan Control: S?FC;Fan Bearing: Hydro Dynamic Bearing;Life Expectancy: 40,000 hours at 40 °C, 15 % - 65 % RH
Cable Information: Modularity: Fixed Cables;Cable type: Individual Black Cables with Braided Pattern
Features: Electrical Features:;Operating Temperature: 0 - 40 °C;MTBF @ 25 °C, excl. fan: 100,000 hours;AC Input: Full Range;Protection: OCP, OPP, OTP, OVP, SCP, UVP
Safety and Environmental: Safety and EMC: CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA;Environmental Compliance: Energy Star, RoHS, REACH, WEEE, ErP Lot 6



.
