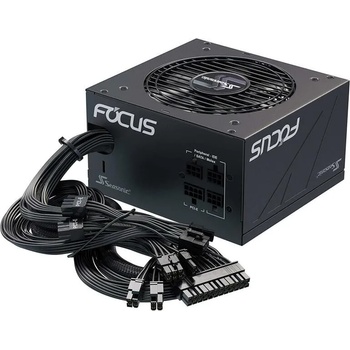

Seasonic Focus G12 GM-850W 80 PLUS Gold (SSR-850FM)

Seasonic G12 GM-850

The G12 GM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GM-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GM series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GM units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).



Specifications G12 GM-850



Power OutputAC Input Voltage: 100 V - 240 VCurrent: 10 A Max. Frequency: 50 Hz - 60 HzDC Output Rail +3.3 V +5 V +12 V -12 V +5 VSBMaximum Power 20 A 20 A 70 A 0.3 A 2.5 A100 W 840 W 3.6 W 12.5 WTotal continuous power 850 WTechnical Specifications80PLUS® GoldForm Factor Intel ATX 12 VDimensions 140 mm (L) x 150 mm (W) x 86 mm (H)Fan Information Fan Size 120 mmFan Control Smart and Silent Fan ControlFan Bearing Sleeve BearingLife Expectancy 25,000 hours at 40 °C, 15 % - 65 % RHCable Information Modularity Fixed cablesCable type Flat black cablesElectrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)MTBF @ 25 °C, excl. fan 100,000 hoursAC Input Full RangeProtection OPP, OVP, OCP, SCPSafety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, CE, FCCEnvironmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
